Solved Soft bricked RAZR XT910

Discussion in 'Android Tech Support' started by Marshy, Feb 23, 2016.

  1. Marshy

    Marshy New Member

    Joined:
    Feb 23, 2016
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Ratings:
    +4
    Current Phone Model:
    razr xt910 umts gsm
    Hello good people,

    I have a Droid Razr XT910 gsm uk retail, which is in need of some assistance. Until recently I had a perfectly good working Droid which I banjaxed.

    The setup was, I had safestrap 3.75 and was running cm 11 on rom slot 1 and cm 13 on stock rom slot.
    Everything was running beautifully until I decided to install supersu on my newly installed cm 13..

    For some reason it failed and was preventing the os to boot, so I got back into recovery and for some reason thought "fix permissions" sounded like a good idea.. in that I thought it would revert supersu's changes or something..

    but it didn't.. still not booting, so this time I thought to "hell with it!!" I'll just reinstall the rom and all will be well in the world.. however it seemed to take a long time with no progress, and then I worried that I had inadvertently removed root with the permissions thing, which was stopping it to load, so I did a powerdown.

    Oops!

    Now, when I boot I get the error droid, and I don't get to go back to safestrap recovery. At error droid, if I do the volume up and down buttons, I get some options about updating via ADB or from external SD card or delete cache and data or factory reset. Which I did but no joy.

    So now all I get is the fastboot menu options and the droid error options menu.. and now I'm having a time trying to find out what to do..

    Seeing as I overwrote my stock rom with cm 13 and didn't make any back ups, are there any doctors in the house here that can explain to me my options?

    Much obliged!

  2. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Well that's some mess you have there. I would expect the best route would be to flash the stock OS and start over, but I'll let some others chime in here first. The consensus is usually the right choice so as they say two heads are better than one.

    Sent from my XT1585 using Tapatalk

    • Like Like x 2
    • Agree Agree x 1
  3. GoCliffGo05

    GoCliffGo05 Super Moderator
    Staff Member Premium Member

    Joined:
    Aug 16, 2012
    Messages:
    3,131
    Likes Received:
    534
    Trophy Points:
    193
    Location:
    Maryland
    Ratings:
    +555
    Current Phone Model:
    Note 7
    • Like Like x 3
  4. Marshy

    Marshy New Member

    Joined:
    Feb 23, 2016
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Ratings:
    +4
    Current Phone Model:
    razr xt910 umts gsm
    @FoxKat Yes. If I had a picture of Laurel and Hardy, I'd be one twiddling my tie right now lookin like a right eejit. As I found out, I didn't even need Supersu and there's warnings not to use it, but I found this out after the fact.. Live an learn eh.

    @GoCliffGo05 Hey, Thanks for looking in. Yeah, I happened across that link in my travels, down loaded what I think is the right one. There's mention of Requires RSD Lite 6.0? but on the Rsd lite site the versions go from 5.7 to 6.1.4? Anyway I got 6.1.4 down. Hope that's ok.

    My problem now it seems is the battery has gone flat, I left it on charge over night but the Moto logo won't switch off and it hasn't charged, Fastboot says battery low - cannot program. I know it needs a full battery for the process. Now fortunately, I bought a new battery for the phone there not long ago, and it came with a charger, I just need that tiny screw driver to get it out. If there isn't another way? it's open heart surgery time for this one..

    I guess if this works, which would be great, I'll lose all the data on the phone. Safestrap an all?

  5. GoCliffGo05

    GoCliffGo05 Super Moderator
    Staff Member Premium Member

    Joined:
    Aug 16, 2012
    Messages:
    3,131
    Likes Received:
    534
    Trophy Points:
    193
    Location:
    Maryland
    Ratings:
    +555
    Current Phone Model:
    Note 7
    Unfortunately the only other option would be to buy a programable cable from team black hat and wait for it to arrive.

    And yes, sorry bud you're gnna lose all data.

    If rsd 6.0 is required, anything above that will be ok.

    Sent from my Note 4

    • Like Like x 2
  6. Marshy

    Marshy New Member

    Joined:
    Feb 23, 2016
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Ratings:
    +4
    Current Phone Model:
    razr xt910 umts gsm
    @GoCliffGo05

    Hey that's a great idea, I watched a vid on how to make one which is well within my skill range. I have the battery out now and it's on charge using a universal charger. But I'm curious, tell me this, besides being able to charge in fastboot how can I use this cable to recover the phone and data?

    Thanks!

  7. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7

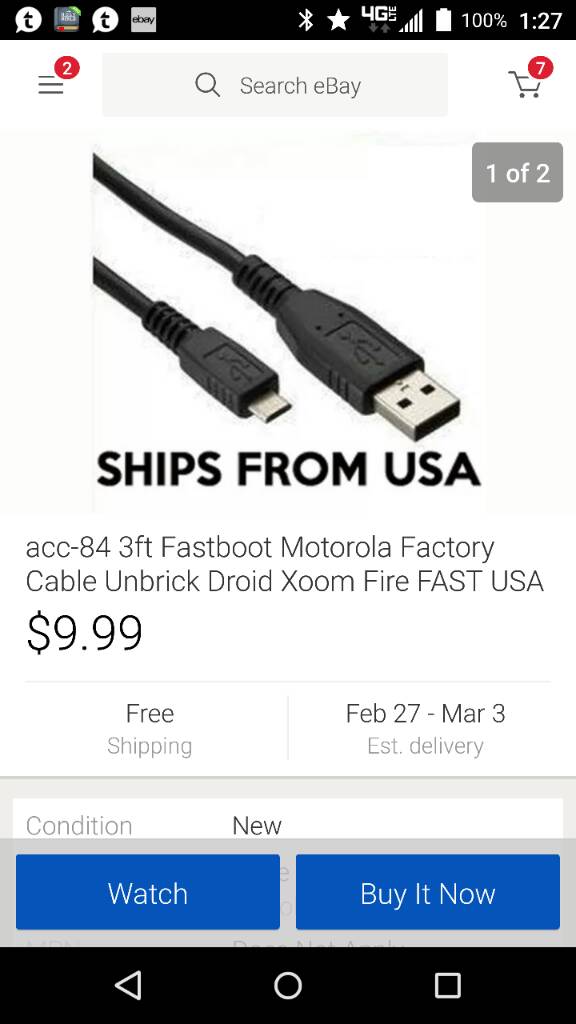

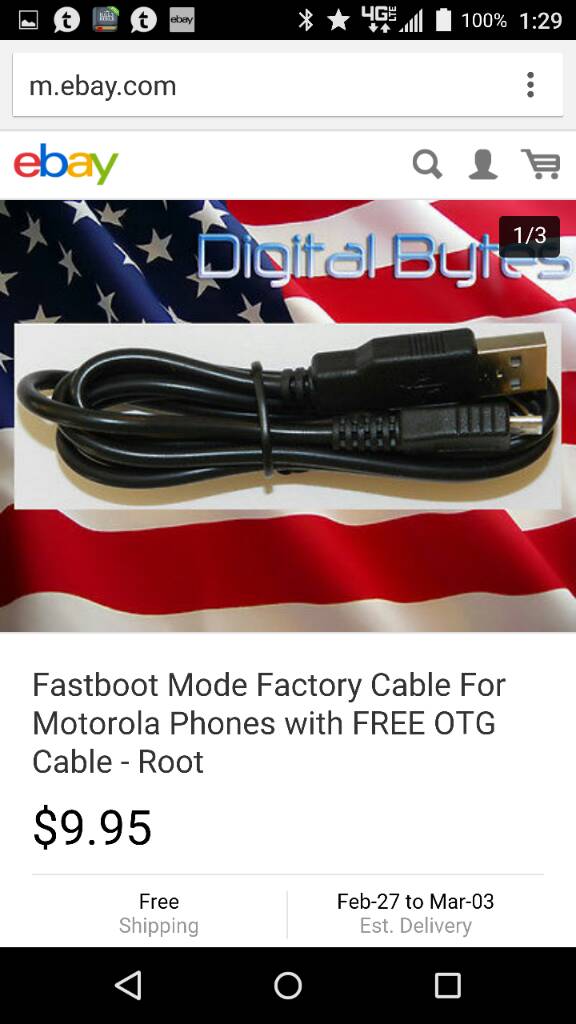

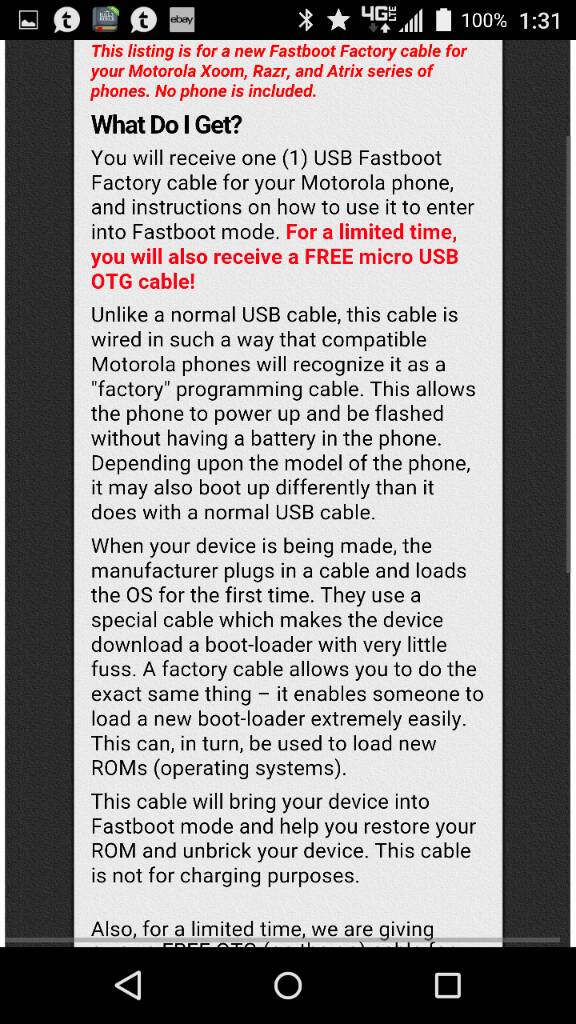

    Here are two factory data programming cables that will allow you to fastboot and flash a ROM even with a dead battery or no battery at all. The second one also comes with a USB OTG cable allowing you to connect external USB hard drives and thumb drives for backup storage.

    [​IMG]

    [​IMG]

    eBay

    [​IMG]

    [​IMG]

    eBay

    Sent from my XT1585 using Tapatalk

    #7 FoxKat, Feb 24, 2016
    Last edited: Feb 24, 2016
    • Like Like x 2
  8. Marshy

    Marshy New Member

    Joined:
    Feb 23, 2016
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Ratings:
    +4
    Current Phone Model:
    razr xt910 umts gsm
    @FoxKat

    Ok wait! Will I be able to recover the data with this thing?

    Sorry I see now, missed the bit of text at the start of the post in all my excitement. Thanks!

    #8 Marshy, Feb 24, 2016
    Last edited: Feb 24, 2016
  9. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Recovering data would happen after you get the phone working again. I can't attest to it but in most cases when you flash a ROM the data remains intact. So there's a good chance all your data will still be there afterwards.

    You may be able to use those cables to gain access to the internal SD card before flashing the ROM but you'll need to be using a software package designed for data recovery.

    Sent from my XT1585 using Tapatalk

  10. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Be wary of charging the lithium ion battery on a "universal charger" unless it's specifically designed to charge LI batteries. Charging those batteries incorrectly can result in overheating and eventual rupture and hot flaming gases.

    In fact it's recommended to only use the Factory Data Cable for as long as it's needed to obtain a working operating system. Since it dumps the full current and voltage of the charger block directly to the battery it bypasses all the safety features of the built-in charging system and doesn't meter or adjust charging it, therefore it can also result in overcharging and a ruptured battery. I generally recommend no longer than one hour initially followed by one or two half hour periods maximum.

    To be 100% safe, disconnect the battery completely and use the cable as the only source of power while flashing the ROM.

    Sent from my XT1585 using Tapatalk

    #10 FoxKat, Feb 24, 2016
    Last edited: Feb 24, 2016
  11. Marshy

    Marshy New Member

    Joined:
    Feb 23, 2016
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Ratings:
    +4
    Current Phone Model:
    razr xt910 umts gsm
    @FoxKat

    Yeah the charger is ok, I put the battery on for an hour or so and it's back in the phone. If I plug the phone into the mains charger I can turn it on and fastboot says we're good to go. However, as soon as I unplug it, it turns off, and when I plug it in the PC a white light comes on but I can't get the phone to turn on?

    The factory cable has pin 1 and 4 connected which is the black and red wires. I've cut a usb cable in have and intend to bridge black to red which should be the same thing as a factory cable.. right? :)

    Edit: Ok wait. It come on now.. I didn't tighten the contacts properly. But now it says battery low again..

    Will this usb cable bodge work? When I plug it in the PC makes a usb connected sound even though there isn't anything attached? Is that right?

    #11 Marshy, Feb 24, 2016
    Last edited: Feb 24, 2016
  12. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    That is correct from recollection. The white light you mention is known as the "white light of death" and indicates the battery has been deep discharged.

    In most cases the battery can be revived with the factory programming cable.


    Sent from my XT1585 using Tapatalk
