[Odin] Froyo leaked packaged custom ROMs w/root and clockwork **UPDATED**3/25
[Odin] Full EB01 Froyo leak, packaged ROMs w/root and new clockwork **UPDATED**2/15
All credit goes to DroidXCon over at Android Forums...
Orig link: [Odin] Froyo leaked packaged custom ROMs w/root and clockwork **UPDATED**3/25 - Android Forums
These packages include EB01 Kernel, Modem, recovery. It also includes root, super user application and clockwork mod for froyo all included.
************************************************** ************************************************** ****
THIS PACKAGE WILL WIPE YOUR DATA AND CACHE, BEFORE ATTEMPTING THIS BACKUP ANY DATA THAT IS IMPORTANT TO YOU.
AND AS ALWAYS NEITHER I NOR ANDROID CENTRAL ARE RESPONSIBLE FOR ANY HACK OR MODIFICATION YOU DO ON YOUR DEVICE.
************************************************** ************************************************** *****
Post #3 has a visual walkthrough of how to use Odin
To install
1. First you will need to download and place on your sd card update.zip, download here Update.zip
Download and install drivers on your computer HERE
2. Next you will need a Froyo tar file which will be placed in the PDA section of odin.
Download your flavor of Froyo Below
Full Stock Froyo Leak+root+Froyo Clockworkmod
EB01_DXC.tar
Debloated/Deodexed Froyo Leak+root+Froyo Clockworkmod
EB01DB_DXC.tar
Super Clean version 2.9 - EB01/EC16 Froyo leak root+Froyo Clockworkmodwith MALWARE protection
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC16SC29_DXC.tar
Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmodwith MALWARE protection
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->Pulled
WARNING: NO DATA WIPE MAY CAUSE FC IF COMING FROM ECLAIR, FULL WIPE IS RECOMMENDED
Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmod with MALWARE protection THIS VERSION DOES NOT WIPE DATA (TESTED by Standupdad Please thank him)
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC10SC292x_DXC.tar
3.) You will need to download Odin application tool found here ODIN or ODIN mirror
4.) If your phone is plugged into your computer, unplug it now.
5.) If your phone is not powered down, power it down now.
6.) Remove battery from phone.
7.) Launch ODIN on PC.
8.) Plug USB cable into phone.
9.) Plug your Fascinate into the PC via USB cable.
10.) Press and hold the volume-down key until you see a gigantic yellow triangle and your phone will be in download mode.(Please see 2nd picture in post #3)You can now release the volume key. At this point you will see a yellow com port in the upper left hand corner of the Odin applicate. .(Please see 3rd picture in post #3)
11.) Click on the PDA button in ODIN
Triple check that you pushed the PDA button. Do NOT click the Phone button prior to continuing to step 13. If you choose Phone, you will have bought your Fascinate a one-way ticket to hell.
12.) Choose the .tar.md5 file you downloaded in step 2 above & click the Start button.(this should take approx 3 to 6mins)
13.) Phone will power down when finished.
14.) Remove USB cable.
15.) Reinsert battery.
16.) Power phone and wait to boot approx 4mins
Congrats you are done you now have Rooted Froyo with new clockwork installed if/when you need it.
NOTE DO NOT FLASH ROM MANAGER RECOVERY IT IS NOT COMPATIBLE

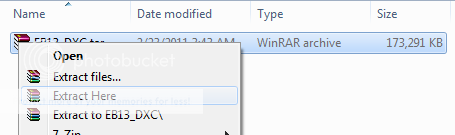

Extracting a compressed file (ex. zip or rar)
1.) Download and install Winrar HERE
2.) Locate the compressed file you would like to extract
3.)Right mouse click on the file icon a drop down menu will appear , select Extract Here
4.) You will then see a progress pop up window that will appear then when completed will close itself

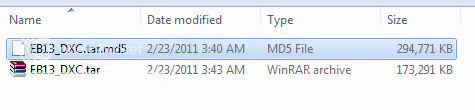

5.)This will leave an extracted file in the destination folder
Congrats you have successfully extracted the compressed file it is now ready for use
__________________
First you must download
Odin v1.3

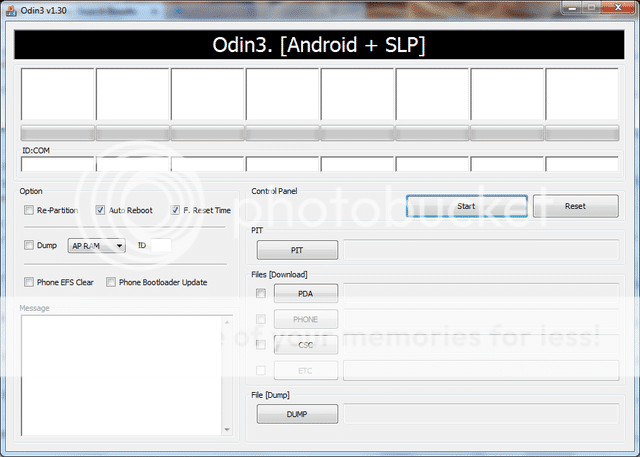

Once odin is downloaded open it, its an executable file so when you open it you will see the following :
Once this is up, do the following
-Remove the battery from your Device
-Plug in the USB cord
-Hold down the Volume Down button until you see a big bright triangle on your screen , underneath it will say Downloading and beneath that it will say Do not turn off target
At this point you will see one of the boxes in the corner turn yellow, letting you know there is a connection
after you are connected you want to hit the PDA button, NEVER PHONE, phone will erase your modem and you will have trouble connecting after that at all.
when you click the PDA button a pop up will appear and you will need to select the file you would like to flash and then click open

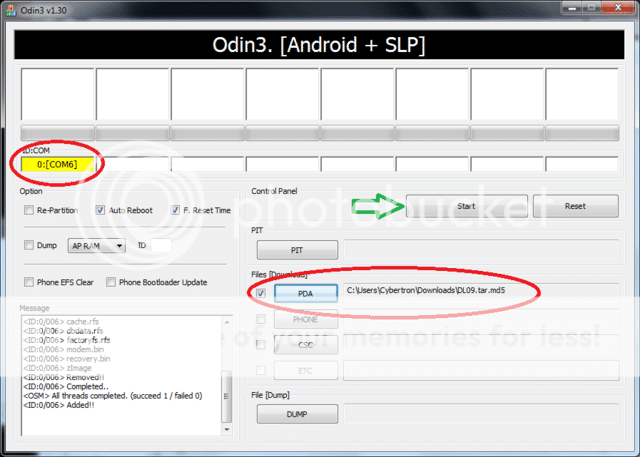

now you will see the file appear in the PDA window....with connection made and the file in the PDA window, you may now hit Start
Once you hit start this process Should take approx. 5 mins if you are returning to stock . shouldnt take any less time than that and not much more. So dont start freaking out at min 2...(wait till min 7) lol
If you are flashing a Clockworkmod file it should take approx 7seconds.
Once it says finished/reboot it is safe to unplug , put your battery in and boot up..
Troubleshooting:
************************************************** **************************
Resolution
First off DO NOT PANIC. there is a simple solution, just remove the battery , plug the phone into the computer, press and hold volume down and it will enter download mode. Please review all the steps oulined in this thread and try and flash again
All credit goes to DroidXCon over at Android Forums...
Orig link: [Odin] Froyo leaked packaged custom ROMs w/root and clockwork **UPDATED**3/25 - Android Forums
These packages include EB01 Kernel, Modem, recovery. It also includes root, super user application and clockwork mod for froyo all included.
************************************************** ************************************************** ****
THIS PACKAGE WILL WIPE YOUR DATA AND CACHE, BEFORE ATTEMPTING THIS BACKUP ANY DATA THAT IS IMPORTANT TO YOU.
AND AS ALWAYS NEITHER I NOR ANDROID CENTRAL ARE RESPONSIBLE FOR ANY HACK OR MODIFICATION YOU DO ON YOUR DEVICE.
************************************************** ************************************************** *****
Post #3 has a visual walkthrough of how to use Odin
To install
1. First you will need to download and place on your sd card update.zip, download here Update.zip
Download and install drivers on your computer HERE
2. Next you will need a Froyo tar file which will be placed in the PDA section of odin.
Download your flavor of Froyo Below
Full Stock Froyo Leak+root+Froyo Clockworkmod
EB01_DXC.tar
Debloated/Deodexed Froyo Leak+root+Froyo Clockworkmod
EB01DB_DXC.tar
Super Clean version 2.9 - EB01/EC16 Froyo leak root+Froyo Clockworkmodwith MALWARE protection
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC16SC29_DXC.tar
Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmodwith MALWARE protection
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->Pulled
WARNING: NO DATA WIPE MAY CAUSE FC IF COMING FROM ECLAIR, FULL WIPE IS RECOMMENDED
Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmod with MALWARE protection THIS VERSION DOES NOT WIPE DATA (TESTED by Standupdad Please thank him)
RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC10SC292x_DXC.tar
3.) You will need to download Odin application tool found here ODIN or ODIN mirror
4.) If your phone is plugged into your computer, unplug it now.
5.) If your phone is not powered down, power it down now.
6.) Remove battery from phone.
7.) Launch ODIN on PC.
8.) Plug USB cable into phone.
9.) Plug your Fascinate into the PC via USB cable.
10.) Press and hold the volume-down key until you see a gigantic yellow triangle and your phone will be in download mode.(Please see 2nd picture in post #3)You can now release the volume key. At this point you will see a yellow com port in the upper left hand corner of the Odin applicate. .(Please see 3rd picture in post #3)
11.) Click on the PDA button in ODIN
Triple check that you pushed the PDA button. Do NOT click the Phone button prior to continuing to step 13. If you choose Phone, you will have bought your Fascinate a one-way ticket to hell.
12.) Choose the .tar.md5 file you downloaded in step 2 above & click the Start button.(this should take approx 3 to 6mins)
13.) Phone will power down when finished.
14.) Remove USB cable.
15.) Reinsert battery.
16.) Power phone and wait to boot approx 4mins
Congrats you are done you now have Rooted Froyo with new clockwork installed if/when you need it.
NOTE DO NOT FLASH ROM MANAGER RECOVERY IT IS NOT COMPATIBLE
Extracting a compressed file (ex. zip or rar)
1.) Download and install Winrar HERE
2.) Locate the compressed file you would like to extract
3.)Right mouse click on the file icon a drop down menu will appear , select Extract Here
4.) You will then see a progress pop up window that will appear then when completed will close itself
5.)This will leave an extracted file in the destination folder
Congrats you have successfully extracted the compressed file it is now ready for use
__________________
First you must download
Odin v1.3
Once odin is downloaded open it, its an executable file so when you open it you will see the following :
Once this is up, do the following
-Remove the battery from your Device
-Plug in the USB cord
-Hold down the Volume Down button until you see a big bright triangle on your screen , underneath it will say Downloading and beneath that it will say Do not turn off target
At this point you will see one of the boxes in the corner turn yellow, letting you know there is a connection
after you are connected you want to hit the PDA button, NEVER PHONE, phone will erase your modem and you will have trouble connecting after that at all.
when you click the PDA button a pop up will appear and you will need to select the file you would like to flash and then click open
now you will see the file appear in the PDA window....with connection made and the file in the PDA window, you may now hit Start
If you are flashing a Clockworkmod file it should take approx 7seconds.
Once it says finished/reboot it is safe to unplug , put your battery in and boot up..
Troubleshooting:
- Reboot your computer
- Redownload the odin package
- Use USB ports in the back of the computer, if you already are use a different port
- Make sure you did not forget to remove battery from phone (Should be out the ENTIRE process)
- make sure Odin is the only application running and Antivirus is DISABLED
- If you are using a laptop make sure its plugged in also find the nearest desktop and try from there
************************************************** **************************
Resolution
First off DO NOT PANIC. there is a simple solution, just remove the battery , plug the phone into the computer, press and hold volume down and it will enter download mode. Please review all the steps oulined in this thread and try and flash again
