OBD ELM327 pairs but won't connect

Discussion in 'Android Tech Support' started by crackenzag, Apr 19, 2010.

  1. crackenzag
    Offline

    crackenzag New Member

    Joined:
    Apr 19, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Hey all. I purchased one of those Bluetooth OBD adapters on Ebay and when I try to connect to it with my droid updated to 2.1 I get a message that it is paired but not connected... And It won't work with any of the apps I got from the market I assume because it's not connected.

    What is the difference between pairing and connecting and why am I having a connection problem?

    I am not rooted and am running the factory ROM version 2.1
  2. JimmyD
    Offline

    JimmyD Member

    Joined:
    Jan 14, 2010
    Messages:
    478
    Likes Received:
    0
    Trophy Points:
    16
    I can't help you, but I will watch this thread too, as I'm very interested in buying one of those bluetooth OBDII units as well.

    I already have Torque downloaded from the market. I hope you post up your findings if you are able to figure out how to get the whole setup working!

    Good luck with it!
  3. crackenzag
    Offline

    crackenzag New Member

    Joined:
    Apr 19, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    anybody got any info here? Even if it's not pertaining to the OBD adapter.

    In general, what is the difference between being paired and actually being connected and how do I go from being only paired to being fully connected?
  4. crackenzag
    Offline

    crackenzag New Member

    Joined:
    Apr 19, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    I've been googling all frickin night and the info for this little "dongle" as it's called (seems a bit profane to me lol) is largely non existant.

    has anybody had success pairing and connecting to this device with their droid? I'm trying to see if the problem is with the dongle or my phone. Either way, I'm frustrated as hell!! I know someone has some info out there!
  5. RichStevenson
    Offline

    RichStevenson New Member

    Joined:
    Nov 11, 2009
    Messages:
    476
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Medina, OH
    I just received the BT dongle off of eBay and have paired it with the Torque app as well as with other OBD programs. Everything just worked for me. No problems at all. I've connected it to my Chevy and my wife's Nissan. It not only shows trouble codes, but you can get real time info while driving. One of the comments on the app was from a pro tech who uses this at work and said it has more features then $300 readers.

    I believe the "Paired but not connected" message is normal for the device. I read it on the developers site somewhere I'm sure. Check his forums.

    Ian Hawkins
  6. lukmech03
    Offline

    lukmech03 New Member

    Joined:
    Sep 3, 2010
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    If your using the ELM 327 for the Torque app, you need to select that device in the Torque app before it will work. Open Torque, press the menu key, then "more": settings : device. It should display the name for the ELM, press it and done.
  7. jerosmith
    Offline

    jerosmith New Member

    Joined:
    Apr 26, 2011
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    Last edited: May 21, 2012
  8. FunN4Lo
    Offline

    FunN4Lo Member

    Joined:
    Feb 2, 2010
    Messages:
    943
    Likes Received:
    18
    Trophy Points:
    18
    I searched for posts on these things, didn't come up with anything. I made a post looking for recommendations, but ended up doing some Google research and ordered one today on Amazon. We will see how it goes when it arrives
  9. georgekale
    Offline

    georgekale New Member

    Joined:
    May 6, 2012
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    0
    I'll let you in on a little secret. That micro CD holds the answer to your pairing problem. The pairing code for my bluetooth is 6789, it was
    I tried : 0000, 1111, 1234

    Software Instruction .we suggest that you can use "scantool_net113win",if you think that this software isn't easy to use,
    you can free to choose following software:EasyOBDII,OBD2Spy,ScanMaster-ELM.But them require lisence.
    Bluetooth pairing code for: 6789
    Let me know if that works.
  10. takaburon
    Offline

    takaburon New Member

    Joined:
    Dec 31, 2012
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    the United States
    Try this. Start with the front page of Torque, opening menu > Setting > Choose Bluetooth Device > press the name of your obd interface, for example Vgate, mini, ELM327.
    If this doesn't work, try using another phone. If it can't connect any phone, it is most likely that the interface is defective.

    I got a defect on eBay. The symptom is that it is hard to connect, I need to open and close Torque many times to get connected. But soon it gets disconnected itself. It is better to get good ones.
  11. jason073
    Offline

    jason073 New Member

    Joined:
    Jul 24, 2013
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    I bought the ELM327 off of amazon (link here) and it worked fine. I connected using the code 1234 to my samsung galaxy and make sure you select the the adapter from the device option in the torque app. If you need help checkout the youtube video on how to connect.
    Last edited: Jul 24, 2013
  12. tester1957
    Offline

    tester1957 New Member

    Joined:
    Aug 16, 2013
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    0
    I had the same problem would pair with the phone but not connect with the app. I am finding that samsung blue tooth has a bug that torque cannot deal with. try powering down the phone then power it back up and connect to the elm327 device works here.
  13. 13lovecar14
    Offline

    13lovecar14 New Member

    Joined:
    Aug 12, 2013
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    ask technicial support

    hi guys, for your case, OBD ELM327 pairs but won't connect may because of your wrong operation, so i suggest you ask the OBD ELM327 technicial support for the solution. if you dont have a technicial support, you can ask technicial support at this obd2 store, they will always give you the best answer. url is : ???? iPhone ipad iPod??WIFI ELM327 ??OBD2 ???????, hope my answer help you.
  14. Ed Devlin
    Offline

    Ed Devlin New Member

    Joined:
    Aug 1, 2014
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
  15. promo87
    Offline

    promo87 Member

    Joined:
    Jun 30, 2014
    Messages:
    265
    Likes Received:
    5
    Trophy Points:
    18
    well,I guess the problem may be because of the ROM version 2.1 try looking over the pack in which Bluetooth OBD adapter came, they may have printed the version supported by the OBD device.
  16. VincentM
    Offline

    VincentM New Member

    Joined:
    Aug 18, 2014
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Got the same dongle and it works fine with my Galaxy S2 but I haven't been able to have it working with my Nexus 5. Looks like it pairs but that's about it. Same car, same device, other phone (and android version). It also doesn't pair with my Nexus 7 tablet. I'll try 6789 as pin tonight but I doubt this will be the solution.

    update: it only accepts pin 1234. It detects faulty pins
    Last edited: Aug 19, 2014
  17. xakerofxanthi
    Offline

    xakerofxanthi New Member

    Joined:
    Tuesday
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Hello. Some years ago i have buy the just below
    [​IMG]

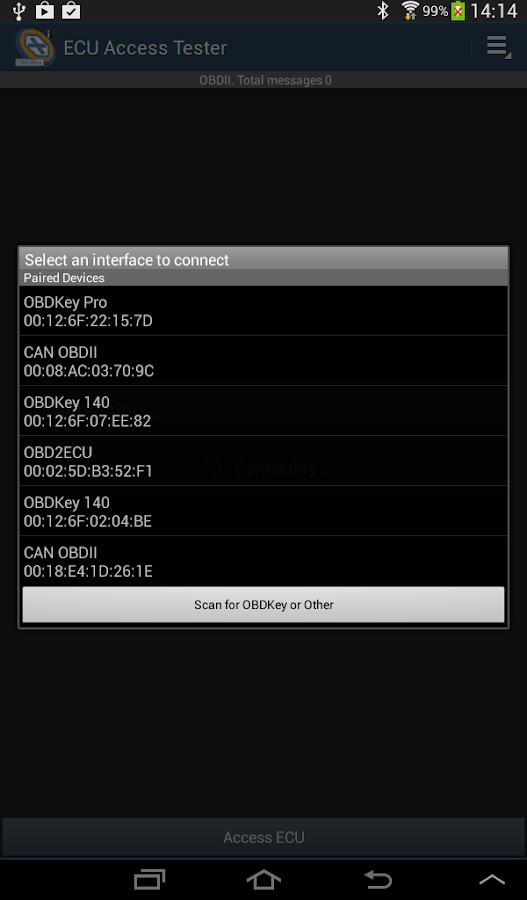

    and it was connected just ok with my phone. Now i have buy this

    [​IMG] [​IMG]
    and it wont connect to my galaxy tab 3 10.1 at torque settings it says the adapter try to connect to my phone. What i can do ?? Thanks for your time.
