Solved Little black rubber gasket

Discussion in 'Motorola Droid MAXX' started by rthug, Oct 10, 2014.

  1. rthug

    rthug New Member

    Joined:
    Jul 13, 2012
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    3
    Ratings:
    +1
    Does anyone know where the little black rubber gasket inside the maxx goes. Replaced the battery and it fell out.

  2. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    If it's small and either circular or oval it's probably a seal around the microphone at the bottom rear or around the speaker at the top rear. It's been a while since I had mine open and don't want to open this one because it's a CLNR.

  3. rthug

    rthug New Member

    Joined:
    Jul 13, 2012
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    3
    Ratings:
    +1
    Thanks for the reply fox. This thing is square or a little rectangle. Maybe 1/2 " by 1/2"

  4. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Sounds like the microphone or speaker gasket. The tiny transducers have very little bass frequency response themselves, so the manufacturers create a small bass reflex area in the case to enhance the response. This is done by sealing off a portion of dead space in the case right behind and to the side of the rear of the tiny transducer essentially creating a tiny speaker or microphone cabinet for the bass to be enhanced.

    Look carefully for an outline either on the back of the center chasis or the inside of the rear case lid that matches the shape of that gasket, and that probably runs from about the top or bottom middle of the phone body and goes toward one side.

    If I can find a good pic of it I'll post here.

    Could it be the one at the top right in those shots? If so, that's the speaker gasket.

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]

    [​IMG]

    #4 FoxKat, Oct 12, 2014
    Last edited: Oct 12, 2014
  5. rthug

    rthug New Member

    Joined:
    Jul 13, 2012
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    3
    Ratings:
    +1

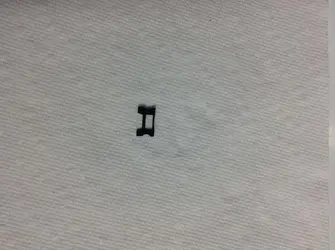

    Here she is ... I hope


    Attached Files:

  6. rthug

    rthug New Member

    Joined:
    Jul 13, 2012
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    3
    Ratings:
    +1
    I found it. It went around the charging port between the motherboard and digitizer. :)

    • Like Like x 1
  7. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Good job. Don't remember seeing that gasket anywhere. Glad you got it back in place. Keeping dust out of the case is a good thing.

    #7 FoxKat, Oct 12, 2014
    Last edited: Oct 12, 2014
