Did something to my recovery but I have no idea what

Discussion in 'Galaxy Nexus Development' started by Darkit, Apr 25, 2012.

  1. Darkit
    Offline

    Darkit New Member

    Joined:
    Nov 24, 2009
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    So I was going through the process of installing CWM on my phone. I've installed all the drivers and rebooted into recovery. I do the fastboot oem unlock and it says waiting for device. My roommate busts into my room saying he needs to borrow my phone really quick, grabs it and unplugs the cord. Well, I rebooted the phone to make sure it wasn't bricked and there was no unlocked logo at the bottom of the screen. Then when I rebooted into recovery, I get the logo of andy with a big red triangle caution sign. Freaking out a bit, I pushed the up/down buttons and the power buttons at the same time. I now have a slightly nandroid-ish screen (blue menu with the blue bar that highlights the selection) that just reads reboot system now, apply update from /cache, wipe data/factory reset, wipe cache partition.

    I have no idea how to fix this. Can anyone help?
  2. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX
    You're back in the stock recovery - and if you didn't see the unlocked logo, just start over and you should be good.
  3. Darkit
    Offline

    Darkit New Member

    Joined:
    Nov 24, 2009
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    It won't let me start over though. When I reboot my phone and use adb to reboot into recovery it just keeps giving me the red caution triangle over andy logo.
  4. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX
    You need to start over completely - i.e. go back into the bootloader, unlock it, and fastboot flash recovery blabla.img . The red triangle/andy thing is just the "entrance" into the stock recovery.
  5. Darkit
    Offline

    Darkit New Member

    Joined:
    Nov 24, 2009
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    I got that part. But how? Whenever I go back to the bootloader I get this picture. Not the typical andy bootloader picture. The commands don't work, fastboot oem unlock, etc, so I can't do anything from there. awesomehop.png nexus-bootloader1-650x432.jpg
  6. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX
    So any time you do "adb reboot bootloader", it boots into the picture with the red triangle?
  7. Darkit
    Offline

    Darkit New Member

    Joined:
    Nov 24, 2009
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    yea, any and everytime.
  8. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX
    so if you power off the device completely (pull the battery), then hold down volume up and volume down at the same time, and while holding them, press and hold the power button - it goes to the red triangle thing? the first image you posted above, not the second?

    If your computer said "waiting for device" when he pulled the plug, then you didn't get anywhere and it shouldn't have messed up anything.
  9. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX

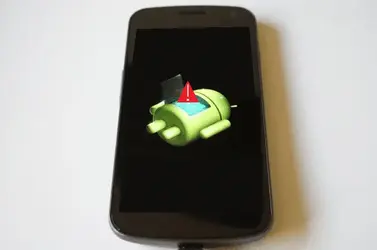

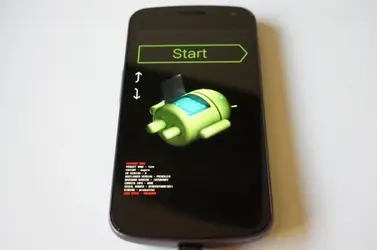

    And just to clarify, in your OP, and since then, you keep saying "reboot into recovery" - when recovery is not where you need to be to unlock it. The first picture you posted above (the red triangle one) is recovery, the second picture with the menu is the bootloader - that's where the fastboot commands will work.
  10. Darkit
    Offline

    Darkit New Member

    Joined:
    Nov 24, 2009
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    0
    Ahhh...gotcha. That's my bad lol. I thought the recovery and bootloader were the same thing. Yea, I was doing everything through the adb commands in windows. But when I do the actual combination of button presses it goes to the bootloader. Woops >.<. Thanks jntdroid.
  11. jntdroid
    Offline

    jntdroid DF Super Moderator Premium Member

    Joined:
    Nov 18, 2009
    Messages:
    6,435
    Likes Received:
    292
    Trophy Points:
    83
    Location:
    TX
    cool - just glad it's working! :)
