You can remove the Galaxy S6’s battery… here's how..

Discussion in 'Android News' started by Jeffrey, Mar 8, 2015.

  1. Jeffrey

    Jeffrey Premium Member
    Premium Member

    Joined:
    Jan 30, 2012
    Messages:
    6,686
    Likes Received:
    3,548
    Trophy Points:
    1,578
    Location:
    Thailand
    Ratings:
    +4,036
    Current Phone Model:
    iPhone 7 Plus JB
    [​IMG]


    In the instruction manual for the Galaxy S6, Samsung offers instructions for removing the device’s battery but warns that this should only be attempted by “your service provider or an authorized repair agent.” If you try to remove the battery yourself and you damage your phone, it will not be covered by your warranty.

    So if you’re willing to take that risk, here are Samsung’s instructions for how to remove the battery:

    Download the S6 manual [link below] and scoot down to page 138.
    • Remove the SIM card tray from the device before starting battery removal
    • Remove the back cover
    • Loosen and remove the screws that line the perimeter of the device
    • Remove the circuit board
    • Disconnect the battery connector
    • Remove the battery
    If you want to see images showing how to do this, check out page 138 of Samsung’s instruction manual by clicking here (PDF). You really shouldn’t attempt this yourself unless you’re completely sure you know what you’re doing

    Samsung

    • Like Like x 1
  2. Ollie

    Ollie Droid Does

    Joined:
    Apr 13, 2012
    Messages:
    3,442
    Likes Received:
    2,103
    Trophy Points:
    1,468
    Location:
    South Coast
    Ratings:
    +2,483
    Current Phone Model:
    Note Edge - iPhone 6 Plus
    It would have been great if they could have made the back plate spring loaded (or hinged...something along those lines) to keep the battery truly removable.

    • Like Like x 1
  3. Jeffrey

    Jeffrey Premium Member
    Premium Member

    Joined:
    Jan 30, 2012
    Messages:
    6,686
    Likes Received:
    3,548
    Trophy Points:
    1,578
    Location:
    Thailand
    Ratings:
    +4,036
    Current Phone Model:
    iPhone 7 Plus JB
    Good point. At least the battery is not soldered in place.

    • Like Like x 1
  4. Ollie

    Ollie Droid Does

    Joined:
    Apr 13, 2012
    Messages:
    3,442
    Likes Received:
    2,103
    Trophy Points:
    1,468
    Location:
    South Coast
    Ratings:
    +2,483
    Current Phone Model:
    Note Edge - iPhone 6 Plus
    Agreed. It will make battery warranty replacements a lot easier for the Samsung certified techs.

    • Agree Agree x 1
  5. hammerhead13

    hammerhead13 Gold Member

    Joined:
    Jan 25, 2010
    Messages:
    1,240
    Likes Received:
    510
    Trophy Points:
    268
    Location:
    Florida
    Ratings:
    +598
    Current Phone Model:
    Samsung Galaxy Note8
    But this still doesnt give us options of Extended Batteries like any of the Previous Models unless there are Higher capacities with the exact same physical size. The only real way of getting any Extended Battery Life will be getting a Powered Cased like a Mophie Case or Something like that. Mophie makes one for the iPhone that has Power and a MicroSD Slot. This would be a huge option for S6 owners if they were to make one for the S6. I know that if they made these for ANY of my Phones I would by them.

  6. RyanPm40

    RyanPm40 Active Member

    Joined:
    May 3, 2010
    Messages:
    894
    Likes Received:
    95
    Trophy Points:
    43
    Ratings:
    +135
    What I want to know is... What do people do when their phone completely freezes up and they can't do a battery pull? It doesn't happen to me often but I've definitely had to a few times... Is there a failsafe force reboot on nonremovable battery phones like this?

  7. bsweetness

    bsweetness Moderator
    Staff Member

    Joined:
    Mar 2, 2010
    Messages:
    3,121
    Likes Received:
    681
    Trophy Points:
    178
    Ratings:
    +754
    Current Phone Model:
    Pixel 2 XL
    Pressing and holding the power button for somewhere between 5 - 10 seconds is how it works with many. Others require pressing and holding the power button and volume up button for 5 - 10 seconds.

    • Like Like x 1
    • Agree Agree x 1
  8. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    @bsweetness is correct here. There is a circuit built into these that uses a time-based shutdown which effectively disconnects the power to a key componet in the circuit which triggers a reboot. This is a HARDWARE shutdown and there is nothing that can prevent it, so unless that actual circuit fails, it is essentially as effective as a battery pull.

    In my Droid Turbo it was exactly 7 seconds from pressing and holding power. So first after pressing the button and holding for 7 seconds the entire display goes black. In about another 5 seconds the new reboot process begins.

    #8 FoxKat, Mar 8, 2015
    Last edited: Mar 8, 2015
  9. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    @hammerhead13 , you are essentially correct. The fact that the battery connections are under the circuit board instead of above it means in order for an external battery to connect it would have to be via a ribbon cable that could lace under the board while properly in place, and then lace out of the casing to where the external extended battery is affixed. It would be far less difficult if the connections were simply exposed just inside the cover. It is entirely possible to achieve, but the risks are many;
    • You first void the warranty by opening the casing
    • then possibly damage (strip) one or more of the tiny hardware screws or threaded posts that affix the circuit board to the chassis
    • then possibly damage any one or more of the actual board components - either by physically breaking them or by static electricity discharge
    • and then there's the possibility that the ribbon cable carrying the power from the external battery into the circuit could become pinched and shorted between the circuit board and chassis or between casing and back cover, causing potential catastrophic failure including fire and burns as the battery heats up rapidly and bursts under the heat and compression
    I won't say it's not possible, but it is highly improbable that a company will want to put all the engineering R&D into this to accomplish an extended battery for this phone. Not to mention the potential liability if their method proves to be a dangerous one and someone were to be injured or worse as a result of the battery exploding.

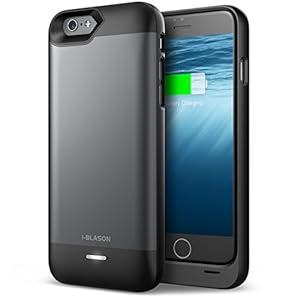

    The most someone could hope for IMHO is an external battery/case combination that connects to the phone via the USB plug on the bottom as seen below for the iPhone;

    [​IMG]
    [​IMG]

  10. bsweetness

    bsweetness Moderator
    Staff Member

    Joined:
    Mar 2, 2010
    Messages:
    3,121
    Likes Received:
    681
    Trophy Points:
    178
    Ratings:
    +754
    Current Phone Model:
    Pixel 2 XL
    Have you tried just pressing and holding the power button by itself for the same length of time? When I owned the Turbo, I only had to press and hold the power button for 7 - 10 seconds. Verizon and Motorola both say the same thing, as does the manual for the Turbo (page 61).

    I remember the power button + volume down button combo being necessary on the Droid MAXX, but I think Motorola removed the need for the volume down button starting with the Moto X (2013).

    • Agree Agree x 1
  11. FoxKat

    FoxKat Premium Member
    Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    14,806
    Likes Received:
    4,751
    Trophy Points:
    838
    Location:
    Pennsylvania
    Ratings:
    +5,290
    Current Phone Model:
    Droid Turbo 2 & Galaxy S7
    Hmmm... Appears you are right. So I stand corrected and will edit the first post. Power button only, accomplishes the same task without the screen capture.

    Thanks @bsweetness !

    • Like Like x 1
  12. 94lt1

    94lt1 Super Moderator
    Staff Member Premium Member

    Joined:
    Jan 16, 2012
    Messages:
    17,150
    Likes Received:
    4,040
    Trophy Points:
    1,138
    Location:
    SE TX
    Ratings:
    +4,530
    Current Phone Model:
    Droid Turbo 2
    I have a cure for failing circuits!! My hakko soldering station and a really bad attitude!!
