vehicle mount + garmin ball mount?

Discussion in 'Android General Discussions' started by the3dolla, Nov 8, 2009.

  1. Rich P

    Rich P New Member

    Joined:
    Nov 20, 2009
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    1
    Ratings:
    +0
    Off topic here, but I can't wait for spring by then RAM mounts will have the droid mount for my motorcycle. Already have a mount for the Itouch let that do what it does best, play music. Then with with Autocom I will have nav/phone/internet all with the verizon network. Finally......

  2. skidemn

    skidemn Member

    Joined:
    Nov 18, 2009
    Messages:
    203
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Southern California
    Ratings:
    +0
    Rich P-
    No need to wait. This mount works with Droid and fits motorcycles. Plus the base will fit a magnet to make it go into car mode automatically. I posted a pic in the accessory forum showing that same holder with a cigarette lighter mount in my truck with the car mode visible.

    [​IMG]

  3. pudah

    pudah Member

    Joined:
    Nov 20, 2009
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    West Allis, WI
    Ratings:
    +0
    I've played with a lot of mounts over the years for different devices and gadgets. I have a Garmin Nuvi with a ball socket cradle that connects to the nuvi ball on the window mount, bean bag friction mount, etc. I even used it with a pro-clip mount and other vent mounts, etc. These were all FINE.

    Then I found pro-fit international mounts. They make a few different kinds from ones that stick on like others, ones that tap into your plastic of the car for you to decide where it goes, bike mounts, motorcycle mounts, etc. They also make some cradles and universl mounts, etc. However, what got me was called their "VSM G3" mount for my Nuvi. They custom design them for specific car models, and cover a LOT of cars. You can check their site to see if yours is there. They find a spot on the dash or surrounding area where the mount can be attached using existing bolts (i.e. the radio mount) or in some cases they engineer a spot where you can drill into plastic and bolt on. The key is that it's all behind panels or bezels and is covered back up so all you see, basically, is the black ball that is sized for the nuvi mount/cradle. It looks like it is facotry installed for the car.

    For mine I used their specific to my car instructions and pulled a bezel off from around the radio with a tool they have to pry it off. That exposed the polts holding the radio in place. I removed one bolt and the metal end of the mount pushed in over the exposed hole. It was a tight and snug fit without putting the bolt back in, which is good because the pressure of putting the cradle on and taking it off isn't torquing at the point with the bolt. I put the bolt back in through the hole of the new mount and tightened it down. The thin and flat metal piece bends over to where the crack, or seam between the bezel and the surrounding panel in my dash is. It is just thin enough to fit snugly in that gap when the plastic bezel is pushed back on. Coming out of that seam is a small flat piece of metal for a tiny bit and then the black rubberized ball. You can clip the nuvi cradle right on to this ball. They also provide what is called a J Stem which is an extender. It snaps on to that ball, and is an extension arm with another ball on the other end. This allows you to have the cradel swing out from where the fixed ball is so it's further away from the dash and can go further in any direction from it to the sides or above/below. Very cool.

    The best part is you can buy all kinds of cradles with this socket on it to fit the ball for all kinds of devices. You can also get adapters with the socket on one side and blank flat plastic on the other or a flat square with holes to screw on to, or t slot type clips in all sorts of arrangements for different devices. I thought I would need one of these for the droid. In fact, the president of the company sent me one thinking so too, as he's looking into making a specific droid cradle for this mount upon my suggestion. It wasn't necessary because I have the official OEM car mount. I suppose if you had some universal cradle or something you could get the adapter from him (it has a loose socket that snaps on and a collar that screws over it to tighten down, just like the moto car dock, and a clip on the other side), but with the official car dock you need nothing. There is a collar on the dock where the part that you clip the cradle on to meets the arm for the suction cup. You unscrew this collar and expose the joint that allows you to twist and move the cradle to your desired position. It will now pop off of the arm. This socket will snap perfectly on to the nuvi ball on the VSM and and you put the collar on first and then tighten down in reverse of how you removed it from the offical dock/mount. Now your offical cradle will slide on to this assembly and you're good to go. I use the J stem to keep the droid out away from the dash and further to the side so it doesnt block my radio controls.

    The only drawback is that it cost about $30 for the VSM and for the Droid car dock. I got discounts on both, but you might not, so it's pricey. If you have a mount now for your Nuvi that you like with the ball on the end or any other with a ball on the end, getting the car dock from Verizon and using the above method to attach to it will work fine and you can use your old set-up for the droid, but for me it is the VSM G3 and the Droid Dock FTW! It is just really good looking. The mount looks like it was designed into the car, and the OEM cradle snaps the droid in place perfectly while activating car mode. I can position it anywhere and its out of view of theives. If Im concerned I can unscrew the collar and remove the cradle in about 3 seconds and all thats left is the VSM mount and from outside it looks like nothing is there, so there is no incentive to break in.

    Here are some pictures (sorry for the quality, some were taken with the droid before the camera started focusing):

    The back of the motorola cradle with the attachment plate connected and collar removed (off to the side) with the socket exposed.

    [​IMG]

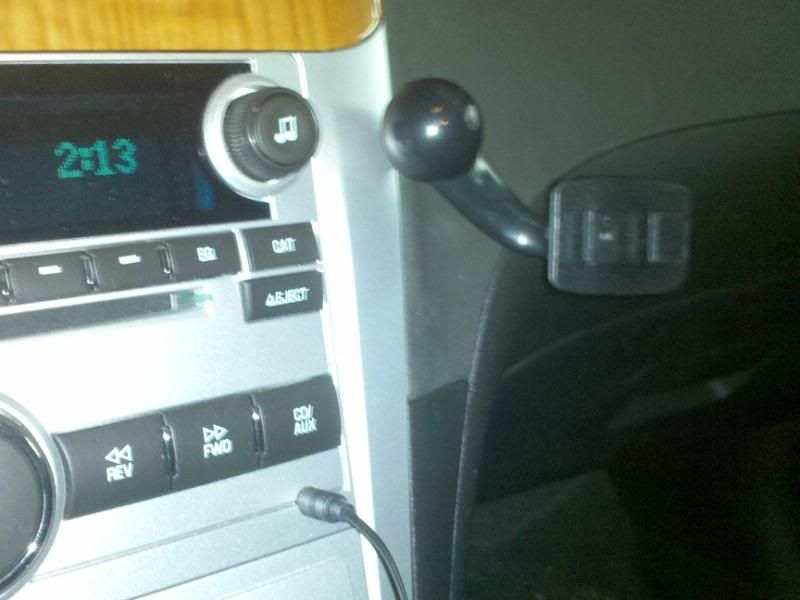

    The VSM mount with the J Stem extension arm and the plate that comes with the droid car mount (the socket in the previous picture) attached to the standard sized Nuvi ball and the collar tightened down. The cradle isn't snapped on so it can be seen. On your car the mount might be in a different spot. That black arm can be removed completely by simply pulling it off. Then all that is showing is a black ball about 1/4-1/2 inch off of the dash coming from between the joint of bezel/dash. That ball will take the socket from the droid car mount too as its the same size as the one at the end of the J Stem arm.
    [​IMG]


    The same shot with the cradle attached.
    [​IMG]


    Droid in the mount landscape mode.
    [​IMG]


    Portrait mode.
    [​IMG]



    Although it can be easily removed and there is no sign the mount was ever there, it's almost like it's permanant. It doesn't move around or rattle. You can put a fair amount of pressure on it. It is sturdy and doesn't block a vent or damage your car or scratch anything or slide around or rattle.

  4. lstroyan

    lstroyan Member

    Joined:
    Nov 11, 2009
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    6
    Ratings:
    +0
    This is a beautiful set up!

    Can someone tell me if the "leather" / grippy case that Verizon sells will fit into the car dock? It's strange - they sell a package with a case and a dock, but at least for the desktop dock, you can't use them together. (Since my husband has a Droid also, he uses the desktop dock and I use the case). I'd really like a car mount solution (not suction cup) for a Toyota Highlander that fits the case too. (I'm not currently using the belt clip attachment but fitting that would be icing on the cake...)

    Lisa

  5. pudah

    pudah Member

    Joined:
    Nov 20, 2009
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    West Allis, WI
    Ratings:
    +0
    You wont be able to put the phone in either dock with a case or protector on it. The only exception to that would be if you had one of those protective films you apply to the screen and the body or if you had one that snapped on to the front and back separately, then you could work with taking pieces off to see if it snaps in, but that seems silly.

  6. rlb

    rlb Member

    Joined:
    Nov 4, 2009
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Central New Jersey
    Ratings:
    +0
    Pudah thanks for the write up! My G3 mount was already ordered in hopes that the ball would work with the Motorola droid mount.
    Thanks for confirming it. I hope the G3 gets here before thanksgiving

  7. pudah

    pudah Member

    Joined:
    Nov 20, 2009
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    West Allis, WI
    Ratings:
    +0
    Everything I've ordered from them has come the next day. They are in MN and I am in WI.

  8. Lock-N-Load

    Lock-N-Load Member

    Joined:
    Feb 7, 2010
    Messages:
    73
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Westsiiide
    Ratings:
    +0
    eek.. over $65 for the pro-fit international mount system for my car :(

  9. takeshi

    takeshi Silver Member

    Joined:
    Nov 29, 2009
    Messages:
    4,581
    Likes Received:
    0
    Trophy Points:
    151
    Ratings:
    +0
    In my experience most good mounting solutions (i.e. not windsheild, friction or vent mount and not generic device holders) aren't cheap.

  10. pudah

    pudah Member

    Joined:
    Nov 20, 2009
    Messages:
    337
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    West Allis, WI
    Ratings:
    +0

    They are not cheap, but they are good. If you search you may be able to find some codes you can use as a reseller, dealer, etc. for a 50% discount.

    They are really good though, the quality and service. I got my stuff really fast, and any issues I've had have been dealt with by the president and free replacements, etc. This happened when I was looking to get a different mounting plate than stock and the guy sent me a few versions for free to use.

  11. Lock-N-Load

    Lock-N-Load Member

    Joined:
    Feb 7, 2010
    Messages:
    73
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Westsiiide
    Ratings:
    +0
    50% discount??!!

    if you know something I do not, PM me :)

    if not, I simply cannot afford that as much as I would love one as I am a freak about clean installs in my car

  12. Lock-N-Load

    Lock-N-Load Member

    Joined:
    Feb 7, 2010
    Messages:
    73
    Likes Received:
    0
    Trophy Points:
    6
    Location:
    Westsiiide
    Ratings:
    +0
    so here is what I did..

    After already buying a cigarette lighter mount from extreme PDA - which comes with a ProClip Droid mount using the dual T-notch system for attachment to the neck - I did a little snooping around as I loved the stealth clean ProFit system, but not the price.

    Well, I found an eBay seller selling the Panavise plate - EXACTLY like the more costly ProFit plate that fits into the dash all nice and clean - for dirt cheap. I just got the Panavise plate for about $19 shipped (versus $32 retail + ship) and already have the ProClip MI-500bg mount with T-Notch back for my Droid so just bought, also off eBay, another vent mount as it has a T-Notch Swivel mount for about $7 shipped (versus $15 retail) which I will butcher for the T-Notch swivel piece to attach direct to the Panavise plate.

    SO.. that means, out the door, I will have 2 complete mounts (for 2 different vehicles) for about the same or a little less than 1 complete retail ProClip: one stealth plate dash mount (the Panavise plate) with a swivel and dual T-Notch quick release ability AND I will be able to take that same ProClip droid mount piece off that and attach it to the T-Notch cigarette lighter mount neck from extreme PDA and leave that in my truck.

    This complete Panavise swivel plate system was about $26 total - and will be just like the ProFit at like +$60 and the cig lighter system was $20. $46 for 2 interchangeable systems using the same T-Notch quick release system... all cheaper than the +$60 for 1 system.

    #24 Lock-N-Load, Feb 19, 2010
    Last edited: Feb 19, 2010
