[Odin] Full EB01 Froyo leak, packaged ROMs w/root and new clockwork **UPDATED**2/11

Discussion in 'Samsung Fascinate Development' started by TAPOUT27, Feb 11, 2011.

  1. TAPOUT27
    Offline

    TAPOUT27 New Member

    Joined:
    Feb 3, 2010
    Messages:
    2,368
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BRENTWOOD, TN
    [Odin] Froyo leaked packaged custom ROMs w/root and clockwork **UPDATED**3/25

    [​IMG] [Odin] Full EB01 Froyo leak, packaged ROMs w/root and new clockwork **UPDATED**2/15

    All credit goes to DroidXCon over at Android Forums...

    Orig link: [Odin] Froyo leaked packaged custom ROMs w/root and clockwork **UPDATED**3/25 - Android Forums


    These packages include EB01 Kernel, Modem, recovery. It also includes root, super user application and clockwork mod for froyo all included.
    ************************************************** ************************************************** ****
    THIS PACKAGE WILL WIPE YOUR DATA AND CACHE, BEFORE ATTEMPTING THIS BACKUP ANY DATA THAT IS IMPORTANT TO YOU.
    AND AS ALWAYS NEITHER I NOR ANDROID CENTRAL ARE RESPONSIBLE FOR ANY HACK OR MODIFICATION YOU DO ON YOUR DEVICE.

    ************************************************** ************************************************** *****

    Post #3 has a visual walkthrough of how to use Odin

    To install
    1. First you will need to download and place on your sd card update.zip, download here Update.zip

    Download and install drivers on your computer HERE

    2. Next you will need a Froyo tar file which will be placed in the PDA section of odin.

    Download your flavor of Froyo Below

    Full Stock Froyo Leak+root+Froyo Clockworkmod

    EB01_DXC.tar

    Debloated/Deodexed Froyo Leak+root+Froyo Clockworkmod

    EB01DB_DXC.tar



    Super Clean version 2.9 - EB01/EC16 Froyo leak root+Froyo Clockworkmodwith MALWARE protection

    RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC16SC29_DXC.tar


    Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmodwith MALWARE protection

    RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->Pulled

    WARNING: NO DATA WIPE MAY CAUSE FC IF COMING FROM ECLAIR, FULL WIPE IS RECOMMENDED
    Super Clean version 2.9.2 - EB01/EC10 Froyo leak root+Froyo Clockworkmod with MALWARE protection THIS VERSION DOES NOT WIPE DATA
    (TESTED by Standupdad Please thank him)
    RIGHT CLICK AND SELECT EXTRACT HERE THE .rar file AFTER DOWNLOADING AND BEFORE USING(How to extract in post #2) -->EC10SC292x_DXC.tar


    3.) You will need to download Odin application tool found here ODIN or ODIN mirror
    4.) If your phone is plugged into your computer, unplug it now.
    5.) If your phone is not powered down, power it down now.
    6.) Remove battery from phone.
    7.) Launch ODIN on PC.
    8.) Plug USB cable into phone.
    9.) Plug your Fascinate into the PC via USB cable.
    10.) Press and hold the volume-down key until you see a gigantic yellow triangle and your phone will be in download mode.(Please see 2nd picture in post #3)You can now release the volume key. At this point you will see a yellow com port in the upper left hand corner of the Odin applicate. .(Please see 3rd picture in post #3)

    11.) Click on the PDA button in ODIN

    Triple check that you pushed the PDA button. Do NOT click the Phone button prior to continuing to step 13. If you choose Phone, you will have bought your Fascinate a one-way ticket to hell.

    12.) Choose the .tar.md5 file you downloaded in step 2 above & click the Start button.(this should take approx 3 to 6mins)
    13.) Phone will power down when finished.
    14.) Remove USB cable.
    15.) Reinsert battery.
    16.) Power phone and wait to boot approx 4mins

    Congrats you are done you now have Rooted Froyo with new clockwork installed if/when you need it.


    NOTE DO NOT FLASH ROM MANAGER RECOVERY IT IS NOT COMPATIBLE


    Extracting a compressed file (ex. zip or rar)

    1.) Download and install Winrar HERE

    2.) Locate the compressed file you would like to extract
    [​IMG]

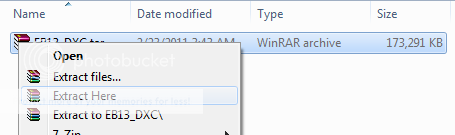

    3.)Right mouse click on the file icon a drop down menu will appear , select Extract Here
    [​IMG]

    4.) You will then see a progress pop up window that will appear then when completed will close itself
    [​IMG]

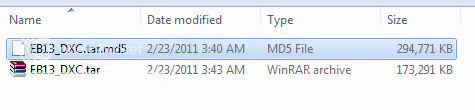

    5.)This will leave an extracted file in the destination folder
    [​IMG]
    Congrats you have successfully extracted the compressed file it is now ready for use[​IMG]
    __________________


    First you must download
    Odin v1.3

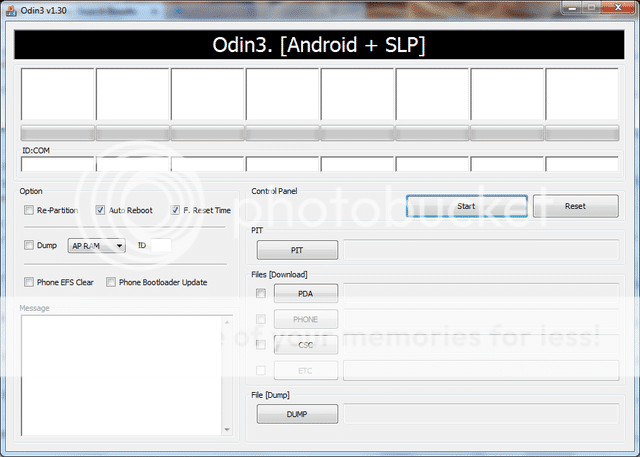

    Once odin is downloaded open it, its an executable file so when you open it you will see the following :

    [​IMG]

    Once this is up, do the following
    -Remove the battery from your Device
    -Plug in the USB cord
    -Hold down the Volume Down button until you see a big bright triangle on your screen , underneath it will say Downloading and beneath that it will say Do not turn off target
    [​IMG]
    At this point you will see one of the boxes in the corner turn yellow, letting you know there is a connection
    [​IMG]
    after you are connected you want to hit the PDA button, NEVER PHONE, phone will erase your modem and you will have trouble connecting after that at all.
    [​IMG]
    when you click the PDA button a pop up will appear and you will need to select the file you would like to flash and then click open

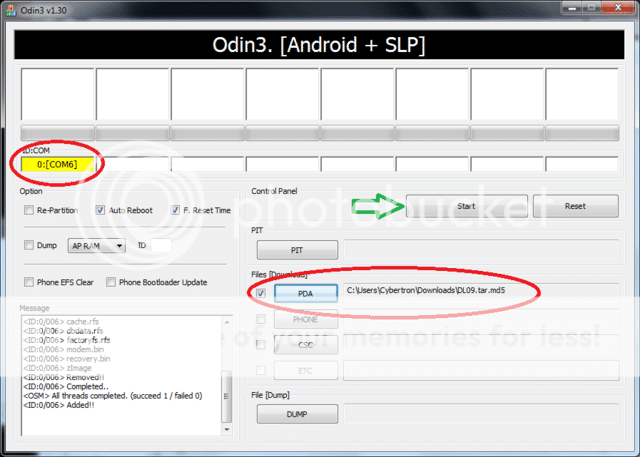

    now you will see the file appear in the PDA window....with connection made and the file in the PDA window, you may now hit Start

    [​IMG]Once you hit start this process Should take approx. 5 mins if you are returning to stock . shouldnt take any less time than that and not much more. So dont start freaking out at min 2...(wait till min 7) lol

    If you are flashing a Clockworkmod file it should take approx 7seconds.


    Once it says finished/reboot it is safe to unplug , put your battery in and boot up..

    Troubleshooting:


    • Reboot your computer
    • Redownload the odin package
    • Use USB ports in the back of the computer, if you already are use a different port
    • Make sure you did not forget to remove battery from phone (Should be out the ENTIRE process)
    • make sure Odin is the only application running and Antivirus is DISABLED
    • If you are using a laptop make sure its plugged in also find the nearest desktop and try from there

    ************************************************** **************************

    Resolution
    First off DO NOT PANIC. there is a simple solution, just remove the battery , plug the phone into the computer, press and hold volume down and it will enter download mode. Please review all the steps oulined in this thread and try and flash again
    Last edited: Mar 25, 2011
  2. ohfire
    Offline

    ohfire New Member

    Joined:
    Mar 24, 2010
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Central Ohio
    download gets to 28.0 and stops. any ideas?
  3. vi3tboiii54
    Offline

    vi3tboiii54 New Member

    Joined:
    Jan 12, 2011
    Messages:
    45
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    San Diego, CA
    are you coming from eclair or dl30?

    Sent from my SCH-I500 using DroidForums App
  4. ohfire
    Offline

    ohfire New Member

    Joined:
    Mar 24, 2010
    Messages:
    238
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Central Ohio
    Been trying since last night to download any of these files. the download will never complete, it always stops at some point and just sits there.
  5. dkupper76
    Offline

    dkupper76 New Member

    Joined:
    Feb 12, 2011
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    0
    Works good so far!

    I spent almost all day trying to root, find, and install a custom ROM on my Fascinate. I previously had a stock ROM that came with the phone, that worked good until Verizon and Samsung pushed an update to me. When I got the update, I started getting DRM Notifications, that caused my phone to freeze up or reboot. I troubleshoot with Verizon and Samsung to no avail. Then the reboots and freezes came more often with and without the DRM notificatiions. At a friends suggestion, I decided to try Rooting, and Putting a Custom ROM on the phone. I spent all day trying to go to a custom ROM, and none of the others worked for me. So far, this one appears to be working good. I will let you know in a couple days, if it continues to work good.

    Thank you so much for this forum with the instructions, the new ROM, and everything else!

    Thanks,

    Daryl
  6. ziggy484
    Offline

    ziggy484 New Member

    Joined:
    Feb 4, 2011
    Messages:
    379
    Likes Received:
    0
    Trophy Points:
    0
    So if i can do this all with odin, that means i dont have to root first right?

    Sent from my stock 2.1 unrooted, fully bloated (for now) Fascinate
  7. ziggy484
    Offline

    ziggy484 New Member

    Joined:
    Feb 4, 2011
    Messages:
    379
    Likes Received:
    0
    Trophy Points:
    0
    Also, i dont have install clockwork before beginning? And if the ota froyo comes can i just use my trusty all in one adrynalyn di01 package to get back to stock?

    Sent from my stock 2.1 unrooted, fully bloated (for now) Fascinate
  8. TAPOUT27
    Offline

    TAPOUT27 New Member

    Joined:
    Feb 3, 2010
    Messages:
    2,368
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BRENTWOOD, TN
    Yes this is an all in one package that brings u up to the latest EB01 Froyo build with root and new clockwork via ODIN....if u accept a VZW update it will unroot u and you can just use this ODIN tar to get back to EB01 rooted etc....but then again if thats the case just dont accept the update so u dont have to fool with it

    Sent from my SCH-I500 using DroidForums App
  9. stuckonashelf
    Offline

    stuckonashelf New Member

    Joined:
    Nov 7, 2009
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    i got root and 2.2.1 but not clockwork. When i goto recovery it shows samsung recovrery?
  10. collinjm01
    Offline

    collinjm01 New Member

    Joined:
    Aug 16, 2010
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    NC, USA
    12.) Choose the EB01_DXC.tar file you downloaded in step 2 above & click the Start button.(this should take approx 9mins)

    This only took me like 4 mins and it was done. But so far so good!
    ALL YOU DEVS ARE WHAT MAKE THE WORLD GO ROUND! :D :D
  11. bL33d
    Offline

    bL33d Member

    Joined:
    Jan 2, 2010
    Messages:
    819
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    illinois
    Nice find! Allrrady on eb01 but nice to have options.
  12. Rsswga
    Offline

    Rsswga New Member

    Joined:
    May 12, 2010
    Messages:
    707
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    bowdon, georgia
    doesn't get any easier flashing with odin. .great job
    thanks


    sent with a Fascinate while driving
  13. pncntigger
    Offline

    pncntigger New Member

    Joined:
    Jun 22, 2010
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    0
    Thank you for this. Just Odin to DL09 then up to EB01 the "long way" this morning before I found this lol. I just tried it and it works perfectly. It will def save me some time in the future. Thanks again to everyone that made this possible.
  14. millwood
    Offline

    millwood New Member

    Joined:
    Feb 16, 2011
    Messages:
    136
    Likes Received:
    0
    Trophy Points:
    0
    Questions

    I am completely new at this and have been reading for a couple of weeks about how to do this. I have gathered so far that this method works great and that I will be able to update to an EB01 Rom doing this. It is also my understanding that this will wipe all of my data (contacts, ringtones, pictures, apps etc....). How does one go about saving these items to reinstall back onto the phone at a later date when done? Sorry for the newbie question. I have tried unsuccessfully to find an answer here. If there is a thread just point me in the right direction and I will gladly read. Thanks.
  15. TAPOUT27
    Offline

    TAPOUT27 New Member

    Joined:
    Feb 3, 2010
    Messages:
    2,368
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BRENTWOOD, TN
    your google account will sync your market apps/history, contacts, some settings etc...using the ODIN files in this thread you can flash a rooted EB01 Froyo rom that will have the corresponding EB01 modem, custom Clockwork mod recovery and EB01 kernel.....basically its like starting from scratch, right outta the box.....its best to do it this way when coming from 2.1 to 2.2 because apps and data are NOT compatible across builds....make sense?

    Once you do this and sync your google account, redownload apps etc you can boot into custom recovery and make a backup of your phone as it is then so you will always have something to fall back on in case you have issues in the future etc......until you have SU permissions and a custom recovery, no, there is no way to truly backup your apps, data, etc
    Last edited: Feb 16, 2011
  16. millwood
    Offline

    millwood New Member

    Joined:
    Feb 16, 2011
    Messages:
    136
    Likes Received:
    0
    Trophy Points:
    0
    Excuse my ignorance here.........so I need to create a Google account on my phone to sync my apps, contacts, etc. From there I would need to use ODIN to take my phone EB01 rooted and then make a backup from there. So I would have a backup of the EB01 "stock" rather than my EB28 stock.

    Once I am rooted and EB01 installed then I need to SYNC to Google and reinstall apps etc. So if I want a backup of my EB28 I need to root that first and make a backup of that. This would take me back to stock as it is now in case I needed it in the future? I know there are programs I am going to need to root and to backup, is there a program I need for recovery? Sorry for all the questions.......new to the android phone thing.
  17. TAPOUT27
    Offline

    TAPOUT27 New Member

    Joined:
    Feb 3, 2010
    Messages:
    2,368
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BRENTWOOD, TN
    yes in order to make a backup of your current EB28 2.1 stock rom you will have to root it, flash a Clockworkmod Recovery file through ODIN and make a backup of your current setup that way....BUT....once you swap to 2.2 it uses a different(though the same) modded CWM recovery that you wont be able to restore that EB28 backup with...see what im saying....you would have to reflash the old CWM recovery you had prior to upgrading to Froyo and wipe wipe wipe and restore EB28, though i have no clue why your wanting to go to all this trouble....EB01 is perfect for the most part, perfectly stable and what this phone should be running...period

    As far as GOOGLE goes, theres no point to having a Google phone if you dont have a gmail address/password to take advantage of the services and perks Google offers on the Google phones....such as cloud syncing, auto-restore apps, settings, contacts etc....thats what makes a Google phone so awesome......

    Moving on......once you have updated to the current EB01 Rom/modem/modded Froyo CWM revcovery through this thread you will be running the most recent software/firmware available....if for some reason you want to return to a previous build, such as, DL01, DJ05, DL09, DL30 or stock EB01 etc....you can easily search and download the ODIN files that will return you to out of the box builds with or without root
  18. millwood
    Offline

    millwood New Member

    Joined:
    Feb 16, 2011
    Messages:
    136
    Likes Received:
    0
    Trophy Points:
    0
    Thanks for all the info......I am sure I will have more questions as I get ready to do this, but this is great. I fully understand the different version of CWM for EB28 and EB01.

    So basically all the info and items I need to download are right here on the first page of this thread. I just need to find the latest version of Odin and the latest CWM file so I can flash that through Odin?
  19. TAPOUT27
    Offline

    TAPOUT27 New Member

    Joined:
    Feb 3, 2010
    Messages:
    2,368
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    BRENTWOOD, TN
    All those are in the OP here....ODIN is linked there and the EB01 ODIN files will flash the EB01 modem/radio, EB01 kernel, modded compatible CWM recovery and rooted EB01 Rom all at once....one package, doesnt get any easier

    just follow the posted instructions and in 20min you'll be good to go
  20. millwood
    Offline

    millwood New Member

    Joined:
    Feb 16, 2011
    Messages:
    136
    Likes Received:
    0
    Trophy Points:
    0
    Thanks!! Greatly Appreciated.
