    Droid X FM RADIO Antenna Rig

    A while back I posted of an idea to build an antenna rig that could pull in distant stations. I posted a how to. Well I finished the project.
    Doesn't look pretty. But it's goal isn't to win a fashion contest. It's to get far away FM signals. It works perfectly!

    BEST about this design. It's removable (easily). Does NOT damage or scratch the phone.

    The only thing I must add. Is if you want to build this you will also need a very sharp knife to cut away the "rubber" coating and get to the plastic so the 3M tape and electrical tape will adhere.


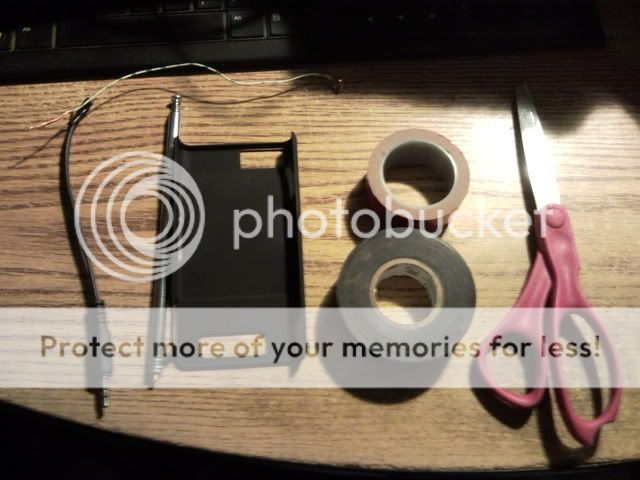

    HOW TO/PARTS

    Images.

    Prep:

    [​IMG]

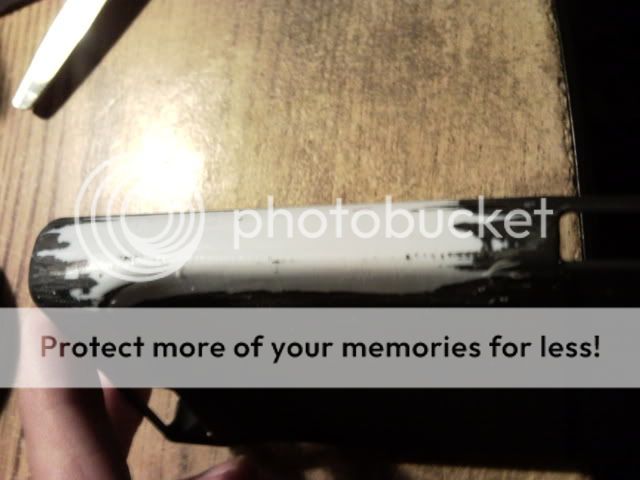

    Scraping the rubber coating off the case to get to bare plastic for better adhesion.

    [​IMG]


    Placing 3M double sided tape on left side of case.

    [​IMG]

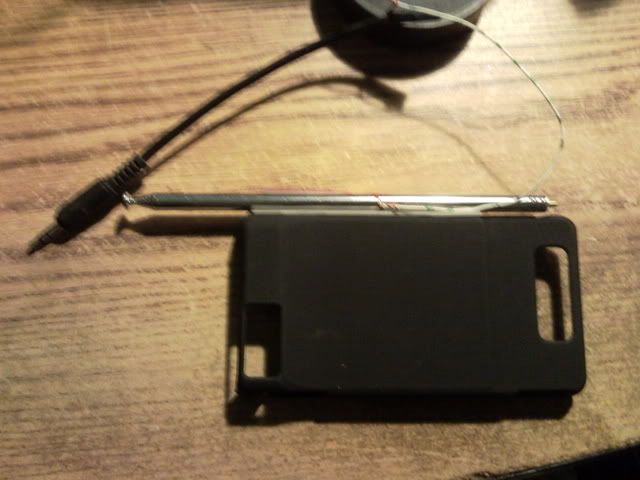

    Attaching telescoping antenna to case WITH antenna lead attached (used 1 strand of Ethernet cable)

    [​IMG]

    Putting a top layer of 3M tape to hold the antenna from pulling off and to better hold to case

    [​IMG]

    With a SECOND layer on the back added as in image before. Began to add electrical tape to hold wire down and "clean" up the look of the case.

    [​IMG]

    Project completed

    [​IMG]

    Project completed (back) with extra 3M tape added to hold the heavy headphone cable to case.

    [​IMG]

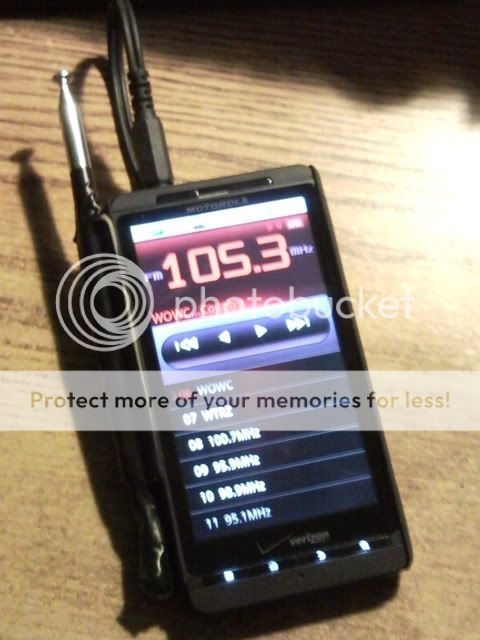

    Phone in case and running FM Radio

    [​IMG]


    All in all this cost over $25 but I now can get stations from as far away as 80 Miles and very weak stations previously unforeseen.

    Alternatively this can be done with a simple headphone remote cable with the 4 connections on the jack. It will not be as strong.

    Also I bought a RC Car transmitter antenna. It's VERY fragile. It may break. You might want to get a stronger antenna . The metal on this antenna is very thin so it has alot of "flex" in the sections.
    Last edited: Dec 27, 2010
  2. yukmizzee
    Offline

    yukmizzee New Member

    Joined:
    Sep 12, 2010
    Messages:
    81
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Michigan
    Wow, your a champ man. I wouldnt dare do that to my X but I applaud you good sir.
  3. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN

    THANKS! :D

    If I could not have gotten a case neither would I. The inside of the case where the phone is is UNTOUCHED. I did NO modifying to that. I baby my Droid X too much to do that. But this works and it does it without hurting the phone or the finish.
  4. Raziel36
    Offline

    Raziel36 New Member

    Joined:
    Dec 10, 2009
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    0
    Smaller antenna and integrate the headphone plug directly on the bottom of the antenna.. would be how I would go about this, but I didn't even consider the option until I saw this. Thanks for getting my wheels turning. I have used my Square Card Reader to get the FM app to work, when I didn't have headphones with me.

    If I decide to change from Fission, back to a blurred rom, I will have to tinker with this idea.

    Sent from my DROIDX using DroidForums App
  5. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    How were you able to enable the fm radio without headphones?! Id be interested in that. Thanks

    I was thinking of wiring a smaller gauge headphone wire to the antenna. But im gonna use this see how it works.

    Sent from XMGUY's Droid X.
  6. Raziel36
    Offline

    Raziel36 New Member

    Joined:
    Dec 10, 2009
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    0
    Anything plugged into the headphone jack should do the trick. I had signed up for and received my free credit/debit card reader from Square. It utilizes the headphone jack. When plugged in, the FM app would work fine, though it's not as good as headphones for picking up a signal, it did work.

    Sent from my DROIDX using DroidForums App
  7. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    Never heard of a setup like that. Why use a credit card reader? Why does a reader come with a headphone plug? Actually any wire connected to the ground or negative will act as an antenna via headphone jack.


    Sent from XMGUY's Droid X.
  8. Raziel36
    Offline

    Raziel36 New Member

    Joined:
    Dec 10, 2009
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    0
    The card reader was designed for Android devices and uses the headphone jack to transmit the card data to the Square app. The reason I used it, was simply because I didn't have headphones with me and wanted to see if it would work for initializing the FM app.

    This is the reader I used for this:
    [​IMG]

    Sent from my DROIDX using DroidForums App
  9. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN


    Sent from XMGUY's Droid X.

    Very cool. Have to look into that.
  10. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    After doing extensive field testing with the FM antenna rig. I surmised that I am able to get high powered stations about 75+ miles away about 80% of the time (Stations that are 100,000 watts). Weaker signals were less than impressive. About 10% of signals from lower powered stations (5000 watts or less). From stations a distance of 30 - 40 miles. Varies on the terrain. So if anyone else wants to build this needs help shoot me a PM. Will help how I can. If you are like me and enjoy FM radio then give the build a try. It definitely pays off as most major stations broadcast with 100,000 watts. It's definitely better than using just headphones.

    Sent from XMGUY's Droid X.
    Last edited: Jan 4, 2011
  11. manaox2
    Offline

    manaox2 New Member

    Joined:
    Sep 24, 2010
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    0
    What about when you want to actually listen with headphones?
  12. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    I have an adapter that I can use with the rig. That allows me to have the jack that serves as the antenna and then splits off for headphones.
  13. synctek
    Offline

    synctek New Member

    Joined:
    Nov 19, 2009
    Messages:
    221
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    AZ
    What app are you using?
  14. droidxethan
    Offline

    droidxethan New Member

    Joined:
    Feb 9, 2011
    Messages:
    382
    Likes Received:
    0
    Trophy Points:
    0
    haha this is great for one i find it funny no offence and two good job never even would have thought to do this but wouldnt really want to but i give u props :)
  15. DroidTh3ory
    Offline

    DroidTh3ory New Member Developer

    Joined:
    Feb 23, 2011
    Messages:
    539
    Likes Received:
    18
    Trophy Points:
    0
    Well I can't deny your ambition, that's for sure..... Kudos!!

    One thing though... I hope you don't plan on flying with your phone. If TSA doesn't lock up you, the Air Marshall will surely climb up your ass with that thing in your hand. Lol.

    Seriously though. Hell of a job.

    :)

    Sent from my DROIDX using Tapatalk
  16. eriscrazy
    Offline

    eriscrazy New Member

    Joined:
    Jun 20, 2010
    Messages:
    281
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Good ol alabama
    ha ha very true they would be all over you brother! that does look like some kinda detonation device! have you used it in public? have you got any crazy looks?
  17. rudydroid
    Offline

    rudydroid New Member

    Joined:
    Feb 27, 2011
    Messages:
    137
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    imperial valley, california
    nice project.
    this is the kind of thing they really like on life hacker.
    also, you might try some of the radio apps in the market. they pull in stations from around the world, and have search functions. of course, you use more data.
    wish I was as inventive.

    Sent from my DROIDX using DroidForums App
  18. sqchram
    Offline

    sqchram New Member

    Joined:
    Nov 18, 2009
    Messages:
    185
    Likes Received:
    1
    Trophy Points:
    0
    Location:
    Salt Lake City, UT
    How's the performance antenna closed vs extended?
  19. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    I know. I've refined it a bit. But it does ok. About the same reception as using a wire antenna with separated ground. TSA would have a field day. Smart phone with 4 ft antenna. Lol. I use the stock fm radio app.

    Sent from XMGUY's Droid X.
  20. xmguy
    Offline

    xmguy New Member

    Joined:
    May 5, 2010
    Messages:
    1,070
    Likes Received:
    4
    Trophy Points:
    0
    Location:
    RURAL TN
    Not at all. It doesn't look
    Great but it also doesn't look junky. Because it's all black no one really notices .
