Droid Display > Incredible Display

Discussion in 'HTC Droid Incredible' started by gatorbait, Apr 29, 2010.

  1. gatorbait
    Offline

    gatorbait New Member

    Joined:
    Nov 23, 2009
    Messages:
    170
    Likes Received:
    0
    Trophy Points:
    0
    The Droid's screen IS better than the Incredible, as far as resolution is concerned. Clarity of text and crispness of edges is superior on the Droid compared to the Incredible, but the Incredible out-performs the Droid on photo reproduction. So there are pros and cons to the Incredible's display. If we didn't have the Droid as a comparison point, the shortcomings of the Incredible's display may not be as easily noticeable, but when you have the Droid as a reference you can quickly tell that something is "off" about the Incredible's display.

    Read the link and see pictures below: Secrets of the Nexus One's screen: science, color, and hacks (The Nexus One and the Droid Incredible use the same PenTile Pixel Matrix technology for their AMOLED screens.)

    "There's no need sell your phone on eBay after reading this, and don't change your mind about purchasing a Nexus One until you've had a chance to see the screen yourself. You may not even notice or care about the text reproduction issue. Only when compared with an extremely high-res LCD screen like on the Droid are the text fuzziness comments truly noticeable—and that's a high standard to hold the screen to."



    Droid LCD on the left; Incredible's AMOLED on the right:

    [​IMG]

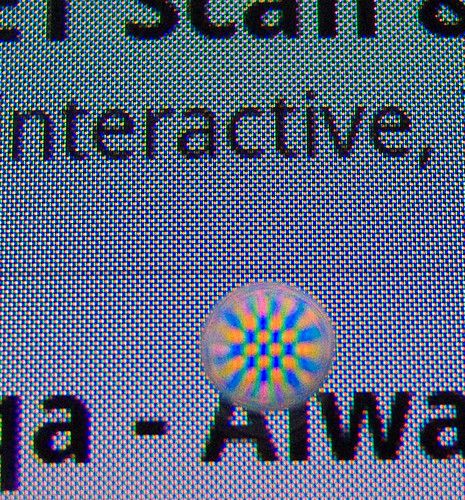

    A close up view of the Incredible's screen with a drop of water magnifying the sub-pixel structure:

    [​IMG]
    Last edited: Apr 29, 2010
  2. ctxx24
    Offline

    ctxx24 New Member

    Joined:
    Mar 27, 2010
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Mid Michigan
    About the 5th thread like this i have read today....:clap:
  3. gatorbait
    Offline

    gatorbait New Member

    Joined:
    Nov 23, 2009
    Messages:
    170
    Likes Received:
    0
    Trophy Points:
    0
    I did not see one like this posted on here. Am I mistaken? I just wanted to help clear up some of the subjective arguments I'm seeing over the two displays.
  4. cplus
    Offline

    cplus New Member

    Joined:
    Dec 24, 2009
    Messages:
    234
    Likes Received:
    0
    Trophy Points:
    0
    Very nice. Quite informative. I havn't seen this information in any other thread yet. If I come up with any good scientific input, I will post here.

    @ctxx24- AND you post is like the millionth I've seen JUST LIKE IT across many informative threads. But ok, thanks for your contribution?
  5. pyro6128
    Offline

    pyro6128 New Member

    Joined:
    Jan 5, 2010
    Messages:
    1,525
    Likes Received:
    8
    Trophy Points:
    0
    Location:
    NYC
    Yea I haven't seen any other threads like this at all. And despite the completely worthless comment made ctxx24, this is actually quite interesting. Good stuff
  6. jroc
    Offline

    jroc Well-Known Member

    Joined:
    Apr 9, 2010
    Messages:
    3,843
    Likes Received:
    61
    Trophy Points:
    48
    Location:
    Washington DC
    I might as well chime in and say this is the first topic I seen on here like this too....thanks. If it was there was no comparison pics like whats posted.

    What about a close-up of the Droid like that too? I will say this: I have seen people not get specific Hi Def TV's because of the screen. I know a TV is not the same thing as a phone, but still. Like I never look at videos on my old smartphone until I got my Droid. I love it on the Droid.
    Last edited: Apr 29, 2010
  7. ctxx24
    Offline

    ctxx24 New Member

    Joined:
    Mar 27, 2010
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Mid Michigan
    Do you just come to this board???? i dont..did i say on this board no i didnt..
    Last edited: Apr 29, 2010
  8. Hugh Jass
    Offline

    Hugh Jass Well-Known Member

    Joined:
    Feb 7, 2010
    Messages:
    1,568
    Likes Received:
    67
    Trophy Points:
    48
    Cool info. Thanks.

    Also let the phone wars begin.
  9. jasonb
    Offline

    jasonb New Member

    Joined:
    Dec 6, 2009
    Messages:
    1,153
    Likes Received:
    0
    Trophy Points:
    0
    anybody notice how much LESS power the Incredible's screen uses though? i had my screen on for 1/4th the time the phone has been powered on and the display used up only 10% of the battery consumption. on my droid the display was always on the top of the list, and usually by quite a margin.

    i did notice text isn't quite as crisp, but it's still perfectly readable.
  10. shamus
    Offline

    shamus New Member

    Joined:
    Nov 20, 2009
    Messages:
    345
    Likes Received:
    3
    Trophy Points:
    0
    Location:
    Pennsylvania
    I don't think you can call repost from another website:unsure:
  11. gatorbait
    Offline

    gatorbait New Member

    Joined:
    Nov 23, 2009
    Messages:
    170
    Likes Received:
    0
    Trophy Points:
    0
    I basically only come to this board for phone information, yes. Whether or not similar information was posted elsewhere is irrelevant to the purposes of this board.
  12. bcrigler
    Offline

    bcrigler New Member

    Joined:
    Apr 29, 2010
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    0
    OLED>LCD... It's a fact. And I had both phones and my wife still has the moto droid. Droid Incredible's display is insane. Sorry...
  13. bcrigler
    Offline

    bcrigler New Member

    Joined:
    Apr 29, 2010
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    0
    OLEDs can enable a greater artificial contrast ratio (both dynamic range and static, measured in purely dark conditions) and viewing angle compared to LCDs because OLED pixels directly emit light. OLED pixel colours appear correct and unshifted, even as the viewing angle approaches 90 degrees from normal. LCDs filter the light emitted from a backlight, allowing a small fraction of light through so they cannot show true black, while an inactive OLED element produces no light and consumes no power.
    OLEDs can also have a faster response time than standard LCD screens. Whereas LCD displays are capable of a 1ms response time or less[47] offering a frame rate of 1,000 Hz or higher, an OLED can theoretically have less than 0.01 ms response time enabling 100,000 Hz refresh rates.
  14. Big Cam
    Offline

    Big Cam New Member

    Joined:
    Nov 11, 2009
    Messages:
    917
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Fargo, ND
    Very interesting info. Now if the droid could just develop the ability to use the battery efficiently.
  15. cplus
    Offline

    cplus New Member

    Joined:
    Dec 24, 2009
    Messages:
    234
    Likes Received:
    0
    Trophy Points:
    0
    This is seems like great info on paper but at the end of the day with the two screens side by side you would have to do serious mental gymnasitics to think the Inc. screen looks better. Oh well..
  16. armeddroid
    Offline

    armeddroid New Member

    Joined:
    Jan 11, 2010
    Messages:
    1,653
    Likes Received:
    30
    Trophy Points:
    0
    Location:
    Traffic Capital
    Good info. Thanks.
  17. bcrigler
    Offline

    bcrigler New Member

    Joined:
    Apr 29, 2010
    Messages:
    49
    Likes Received:
    0
    Trophy Points:
    0
    I mean to be honest... they both have good screens. I personally think inc is a little better but its personal preference. You want to keep the moto droid. Then keep it. They both are great phones.
  18. cplus
    Offline

    cplus New Member

    Joined:
    Dec 24, 2009
    Messages:
    234
    Likes Received:
    0
    Trophy Points:
    0

    OMG DROID screen EATS EATS EATS battery!! I guess its the price you pay for that kinda beauty. I can't wait for AMOLED to progress more.

    Might I restate something important in the OP while I'm at it:

    When these two sceens are NOT side by side it es VERY hard to pick on the Incredible. Goooo DROIDS!
  19. cplus
    Offline

    cplus New Member

    Joined:
    Dec 24, 2009
    Messages:
    234
    Likes Received:
    0
    Trophy Points:
    0

    This is great! Lets start a list of technical strong points of the Inc. screen over the DROID screen. I'll start.

    1. Inc. screen uses less battery.

    Since I only got to play with the Inc. here in my office for an hour I will have to ask others to contribute to this growing list.

    Note: I am only interested in this information from a technical perspective as I don't take opposing device specifications and their real-world values personally.
  20. GodDriven
    Offline

    GodDriven New Member

    Joined:
    Jan 22, 2010
    Messages:
    78
    Likes Received:
    0
    Trophy Points:
    0
    Sadly.. I don't want to compare like this.. But.. It's just as bright.. Clear.. Crisp as my MacBook Pro.. 17Inch.. Quad Core.. LoL..
    Last edited: Apr 30, 2010
