Car Charger for s4

Discussion in 'Galaxy S4 Accessories' started by don_813, Jun 18, 2013.

  1. Natey2

    Natey2 Active Member

    Joined:
    Oct 23, 2010
    Messages:
    1,312
    Likes Received:
    5
    Trophy Points:
    38
    Ratings:
    +5
    Higher current generally means more heat. My Motorola car charger in my former car would get pretty hot (so would the phone DroidX). It actually blew a fuse in my current car, but other similar model car owners have reported that it is a problem with the front cigarette lighter outlet only; the console outlet and rear outlet work fine with that Motorola car charger.
    I have not used my S4 car charger yet.

    Last edited: Nov 7, 2013
  2. Overland1

    Overland1 New Member

    Joined:
    Jul 25, 2011
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Central Upstate NY
    Ratings:
    +1
    I have been using any of a variety of USB-MicroUSB cables that I have laying around, and they all work well. Using a "wall-wart" and cable like the one that came with the phone seems to charge a bit faster, but I have never confirmed this.

  3. James_thomas

    James_thomas New Member

    Joined:
    Aug 4, 2014
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    New York
    Ratings:
    +0
  4. cocole

    cocole New Member

    Joined:
    Sep 29, 2014
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    1
    Ratings:
    +0
    Current Phone Model:
    s4
  5. Overland1

    Overland1 New Member

    Joined:
    Jul 25, 2011
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Central Upstate NY
    Ratings:
    +1
    cocole, that one should work OK; it appears (per the specs) capable of putting out enough current to charge the phone easily.

    With any of these phones, as long as the current output is sufficient, it should work just fine. That output will depend upon what the device draws... if it needs less than 1 A of current to charge the battery in a reasonable time period, then a charger with a maximum output of 2 A is going to do the job. The other part of the erquation is voltage, and most all micro-USB devices run and require the same voltage (~5 volts)... I have never heard of any "mobile" chargers that put out too much voltage, but I guess they could exist.

    Think of current (measured in Amperes) as being like the volume of water running through a pipe or hose. Voltage is like the pressure that the flow of water exerts within that pipe or hose. The multiplied combination of those two equals power, measured in Watts. For example, 5 volts x 2 Amperes = 10 Watts.

  6. jhom

    jhom Active Member

    Joined:
    Mar 28, 2010
    Messages:
    400
    Likes Received:
    26
    Trophy Points:
    28
    Location:
    Dallas, TX
    Ratings:
    +27
    I've been using the Anker dual port car charger for several months quite successfully. The charger outputs 2a at each port.

  7. FoxKat

    FoxKat DF Super Moderator Staff Member Premium Member

    Joined:
    Apr 2, 2010
    Messages:
    12,787
    Likes Received:
    3,319
    Trophy Points:
    723
    Location:
    Pennsylvania
    Ratings:
    +3,636
    Current Phone Model:
    Droid Turbo, and Nexus 6!
    If you put the ammeter between the charger and the battery (fuse at the battery inline), and measured current then you're looking at the current on a 12 volt circuit (actually upto 13.8v). This is the current the charger is pulling from the car, not what it's pushing to the phone.

    Take 12 × .94 and you get 11.28 watts. At 13.8 volts it's 12.97 watts Then divide by 5.1 volts at the plug to the phone and you'll see 2.21 amps at 5.1 volts at the phone (based on 12 volts on the input side), and upto 2.54 amps at 13.8 volts (not counting for loss in heat/resistance). So it's entirely possible that one or more of the chargers you mentioned is capable of putting out 2.1 amps at 5.1 volts.

    To see true current to the phone you'd need to put the ammeter in between the charger cord and the phone itself. There are also apps that can run on the phone and which will tell you how much current the phone is pulling during charge, based on the phone's actual internal charging system monitor.

    Here are two that I know of but there are others...

    https://play.google.com/store/apps/details?id=com.acorilhas.opochargingcurrent

    And https://play.google.com/store/apps/details?id=com.gombosdev.ampere

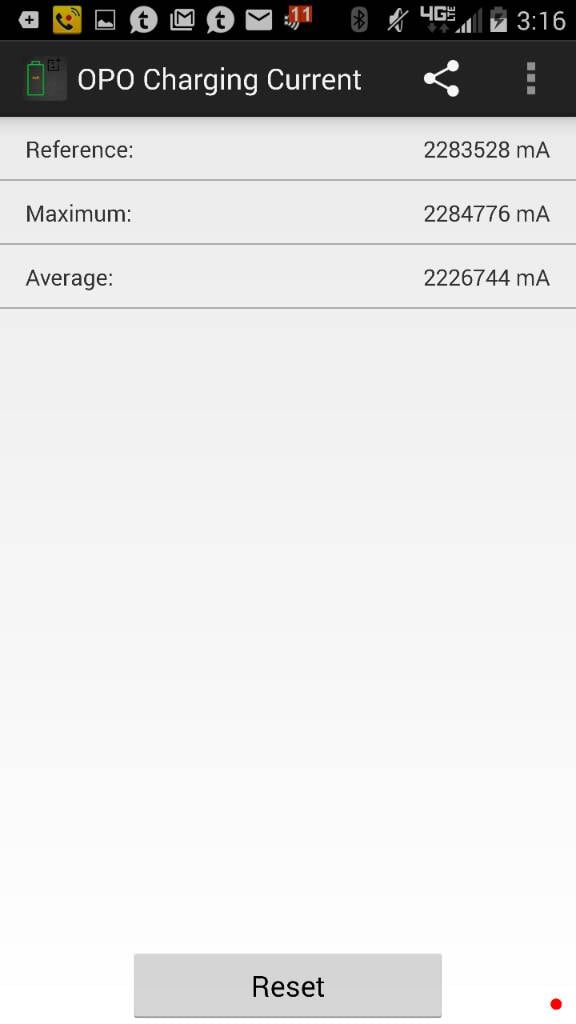

    Below is a reading from opo with my phone on Turbo Charging while at 60%.

    [​IMG]
    It clearly shows at least 2.2 amps going to the battery.

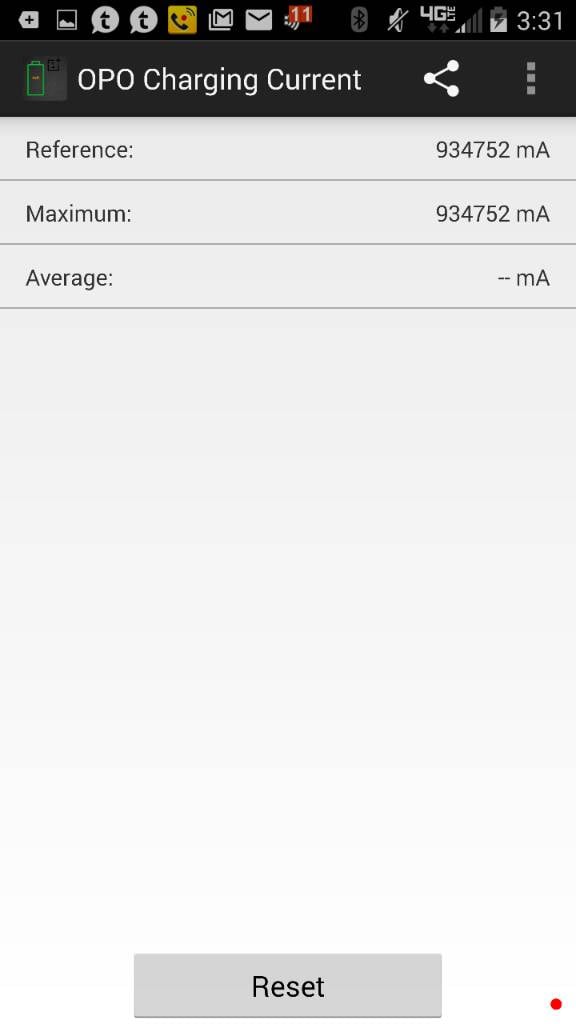

    And here's the same app reading while charging from my 10K portable battery on the 1.1 amp port.

    [​IMG]

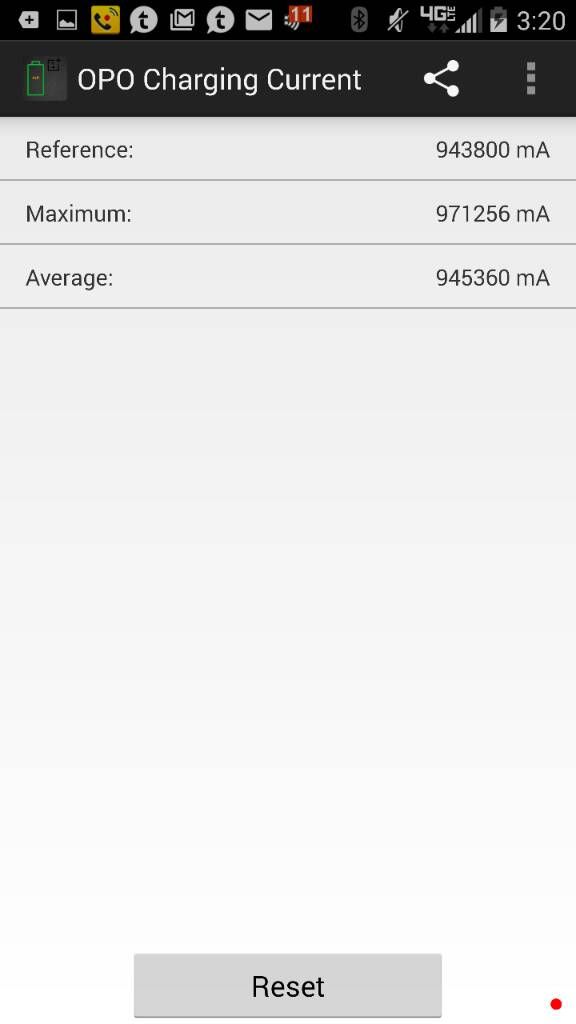

    What's strange is that the following is a reading from the same portable charger but in the 2.2 amp port, and its actually lower... I'm also not getting an average on the 2.2 side and the levels are bouncing all over the range from zero to the max.

    [​IMG]

    I'm beginning to believe the 2.2 amp side of the charger is either defective or the phone is simply working hard to curtail the current rate to protect the battery.

    Last edited: Jul 6, 2015
  8. Natey2

    Natey2 Active Member

    Joined:
    Oct 23, 2010
    Messages:
    1,312
    Likes Received:
    5
    Trophy Points:
    38
    Ratings:
    +5
    Maybe they meant microAmps, not milliAmps (mA), in the app display.
    Because 2226744mA is 2226A, I think.
